Zeppelin Bright™

Lets Do This >

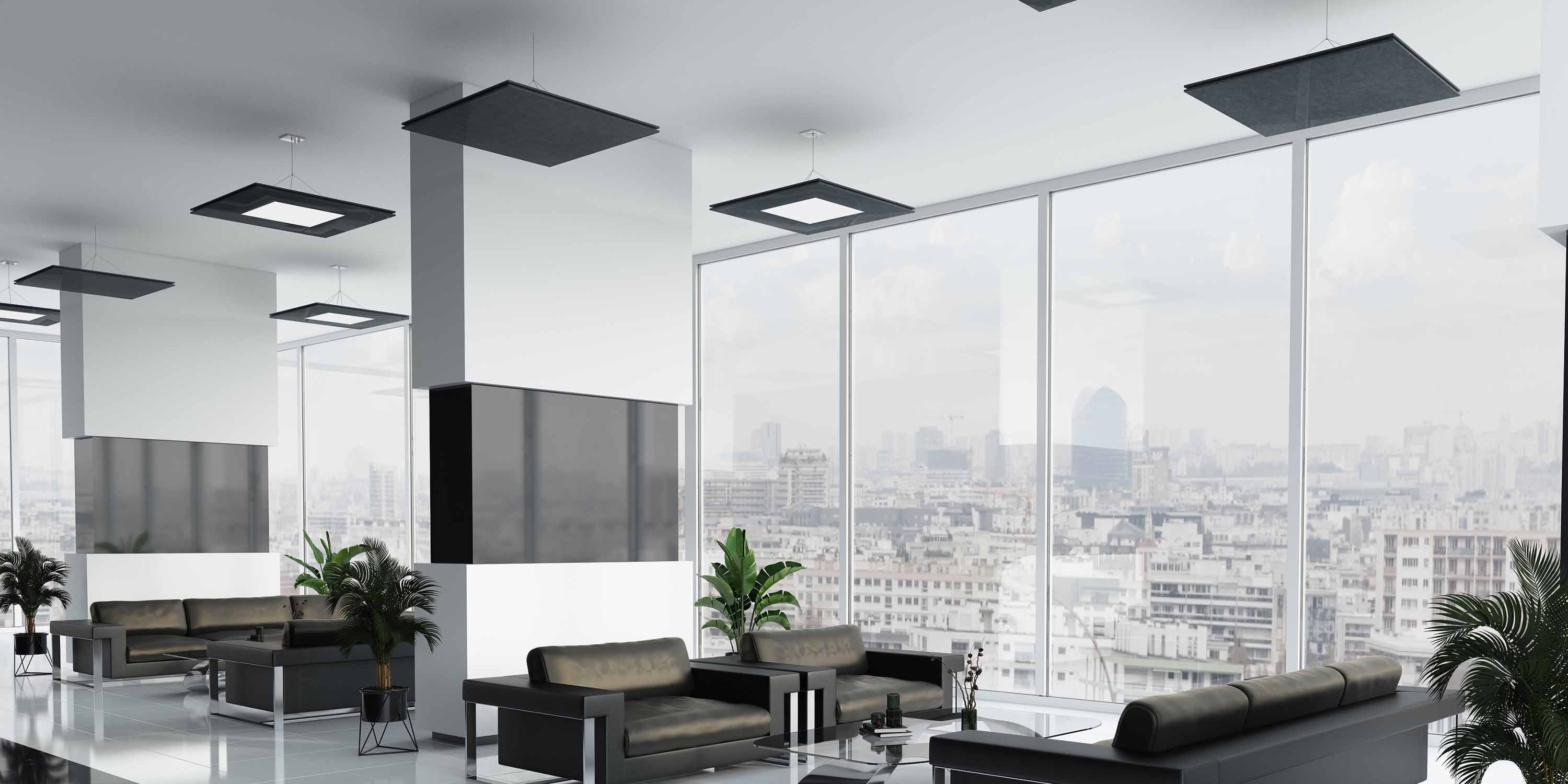

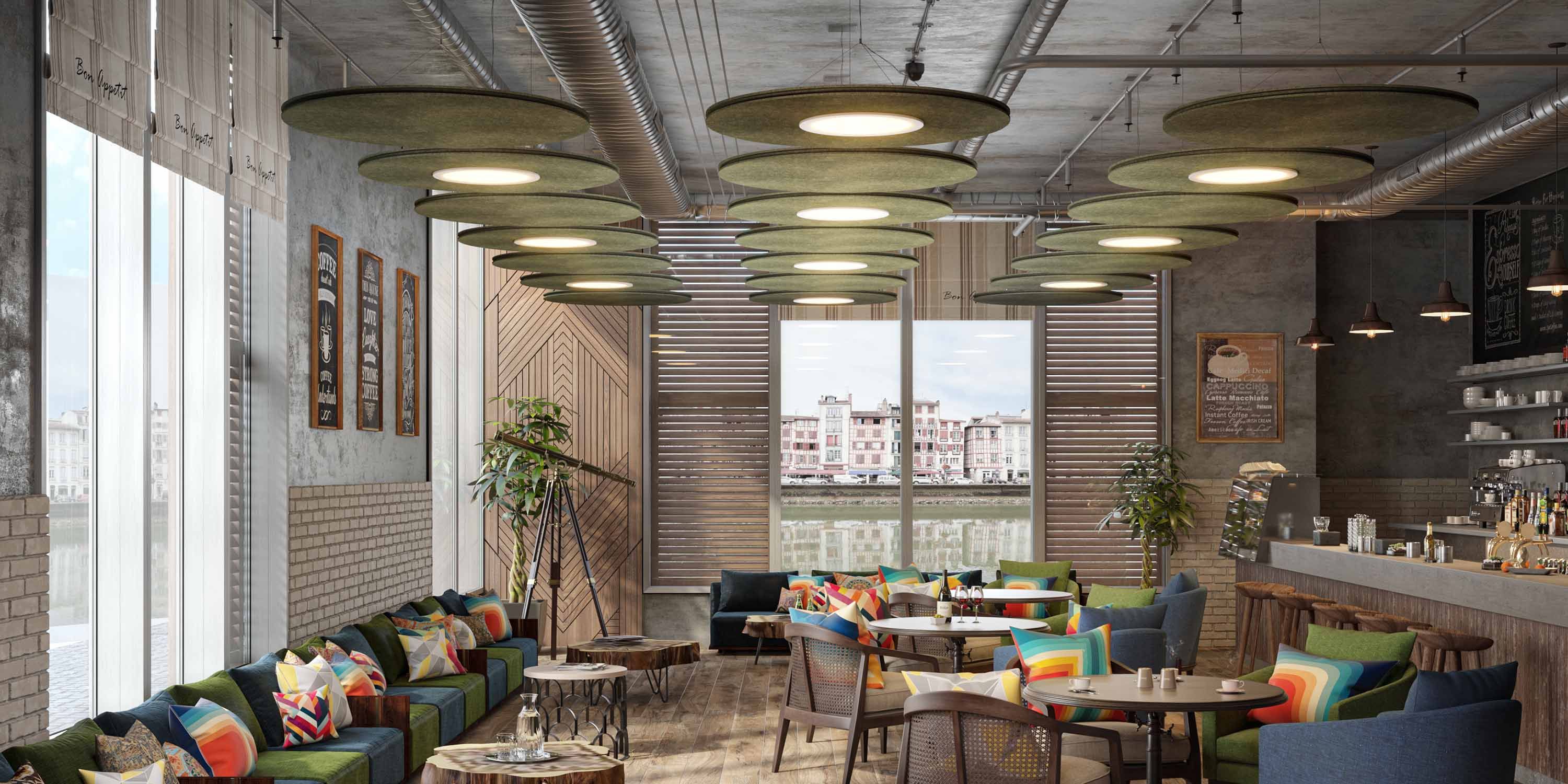

Bring a balance between acoustic performance and lighting with these hanging acoustical ceiling clouds.



Specifications

  • Standard Cloud Sizes: 47” Diameter Circle or 47” x 47” Square
  • Product Weight: 15lbs/Cloud *weight without light
  • Thickness: 2.75"


Lighting Specs

  • Light Wattage: 56W
  • Color Temperature: 3000k
  • LED Dimmability: 0-10V
  • Lumen: 8800
  • Voltage: 120-277V


Environmental Factors

  • 100% recyclable
  • Low VOC Emissions
  • ASTM - D5116
  • LEED - MRc4


Composition

  • 100% Polyethylene Terephthalate (PET)
  • 55% recycled content


Fire Rating

  • Class A per ASTM E-84
  • CAN/ULC S102 testing available upon request

  Downloads:

Brochure (2.2 MiB)

Data Sheet (1.5 MiB)

Material Specs (1.8 MiB)

Color Chart (4.0 MiB)

Installation (2.8 MiB)

Cleaning (135.6 KiB)

Acoustical Data

Frequency (Hz) 125 250 500 1000 2000 4000 NRC.
2.75" Thickness .53 .74 1.06 1.54 1.77 1.94 1.30

Based on Cloud size 4’ x 4’ with Type “J” Mounting.
NRC is an equivalent number based on one face of one panel.
