Hushtone Panel®

Lets Do This > Download MasterSpec®

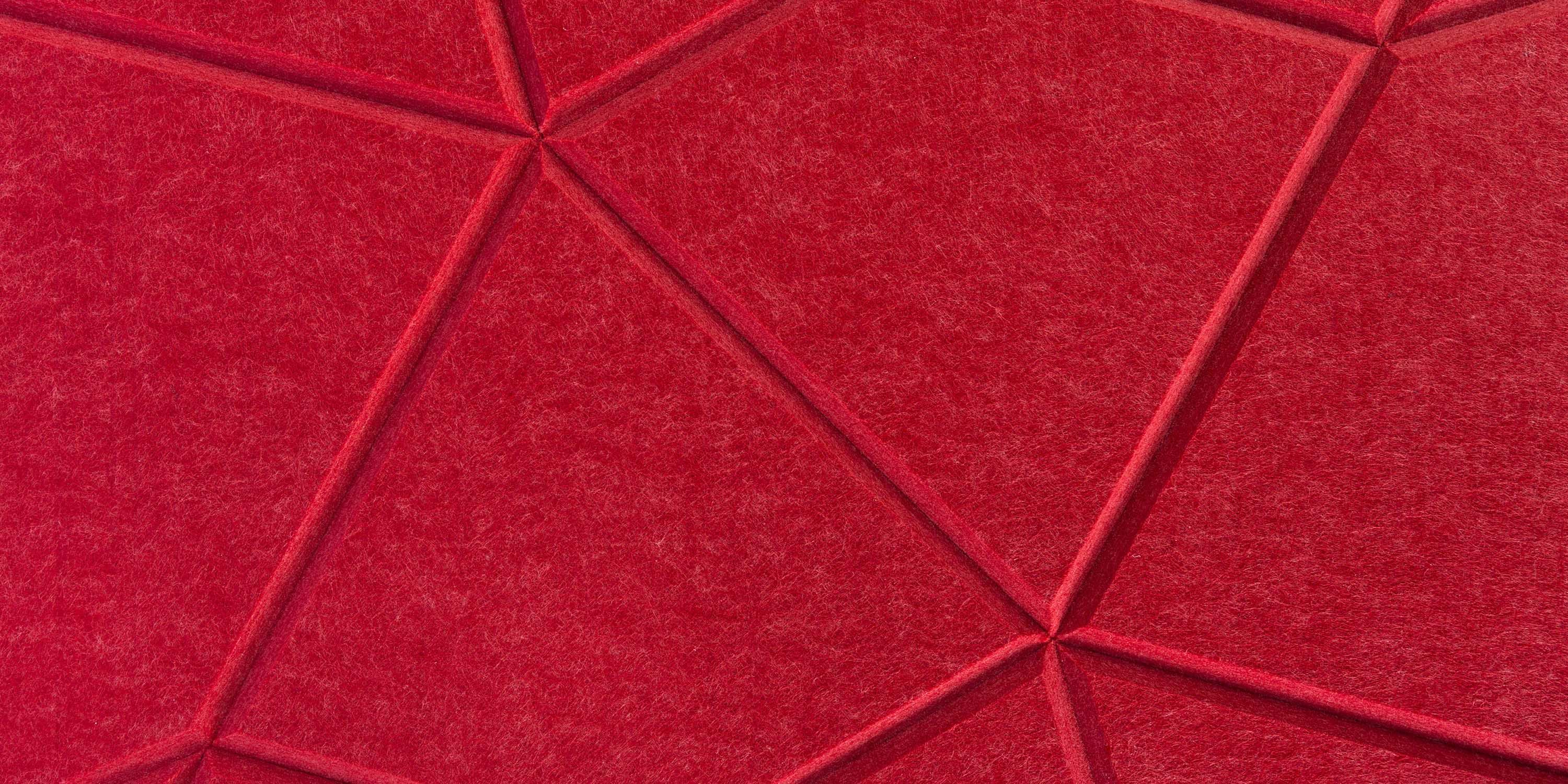

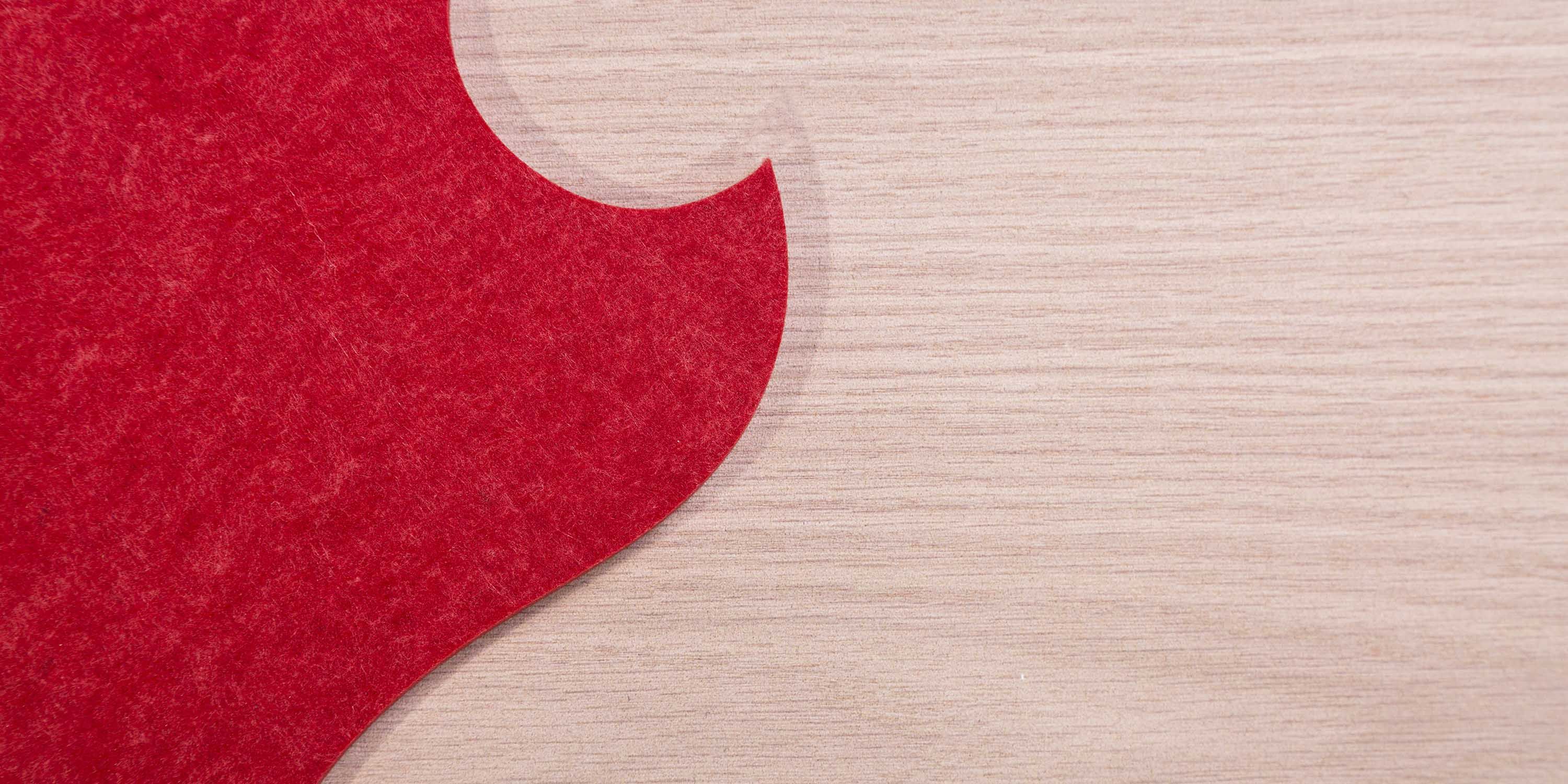

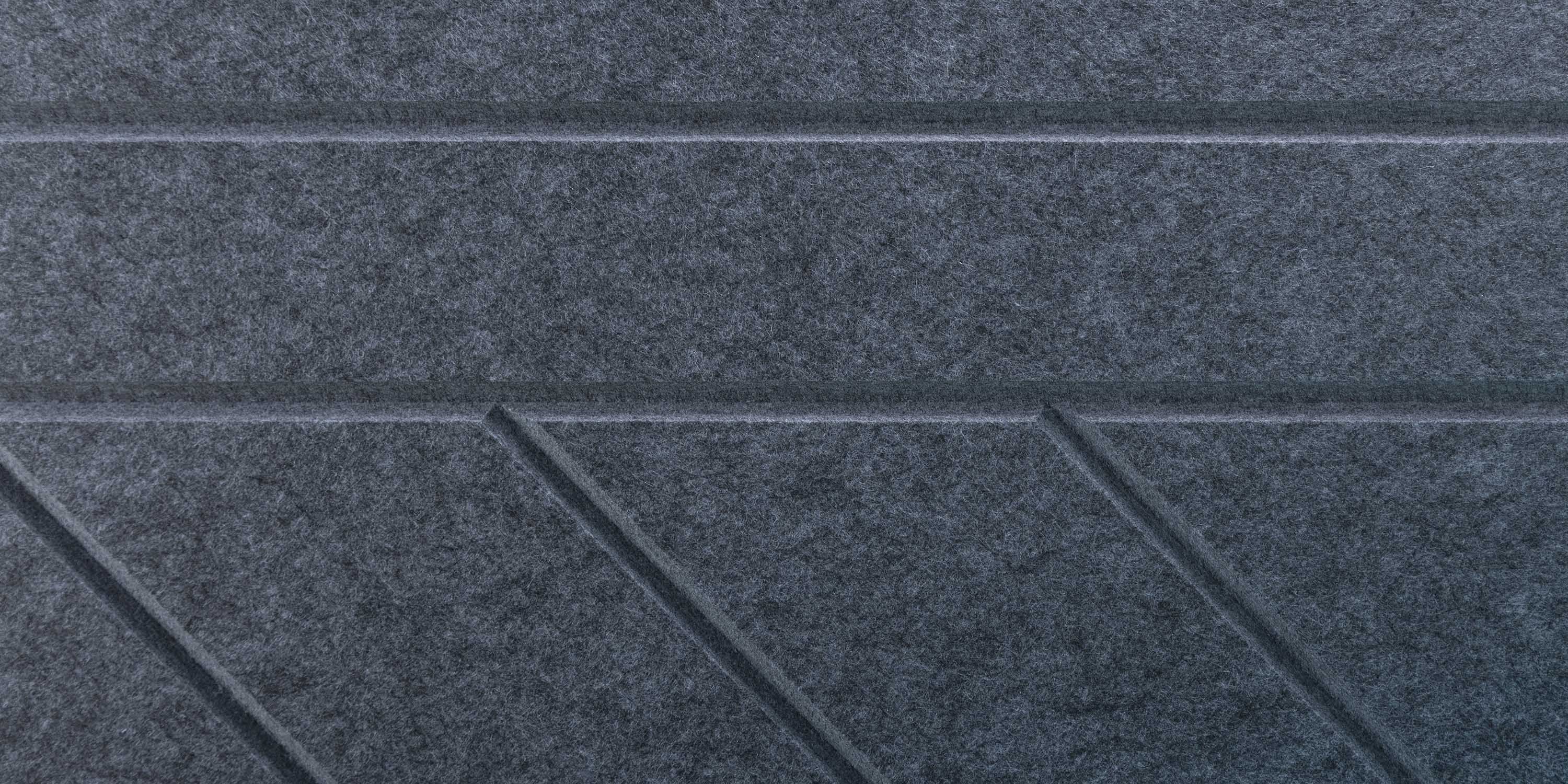

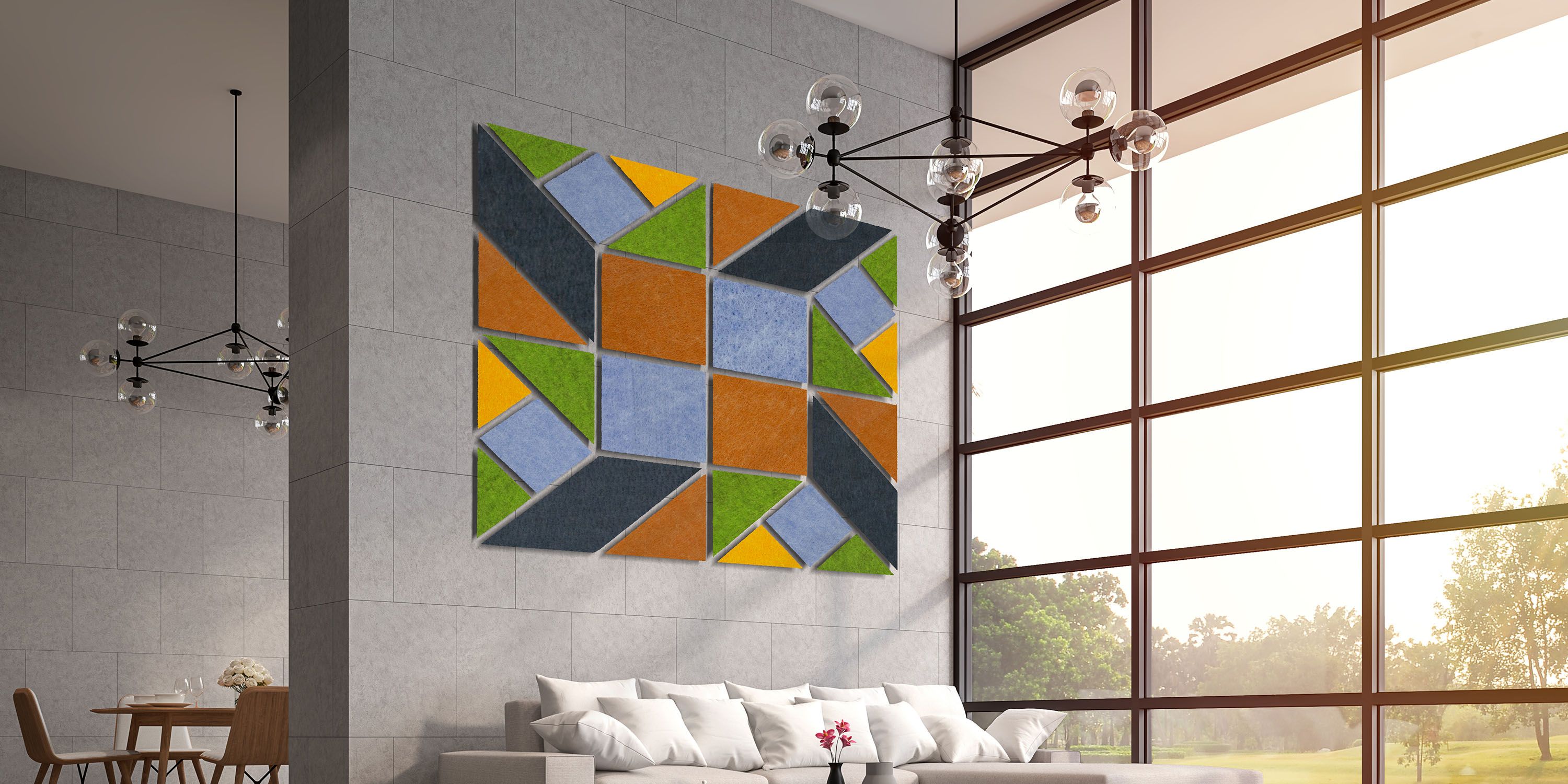

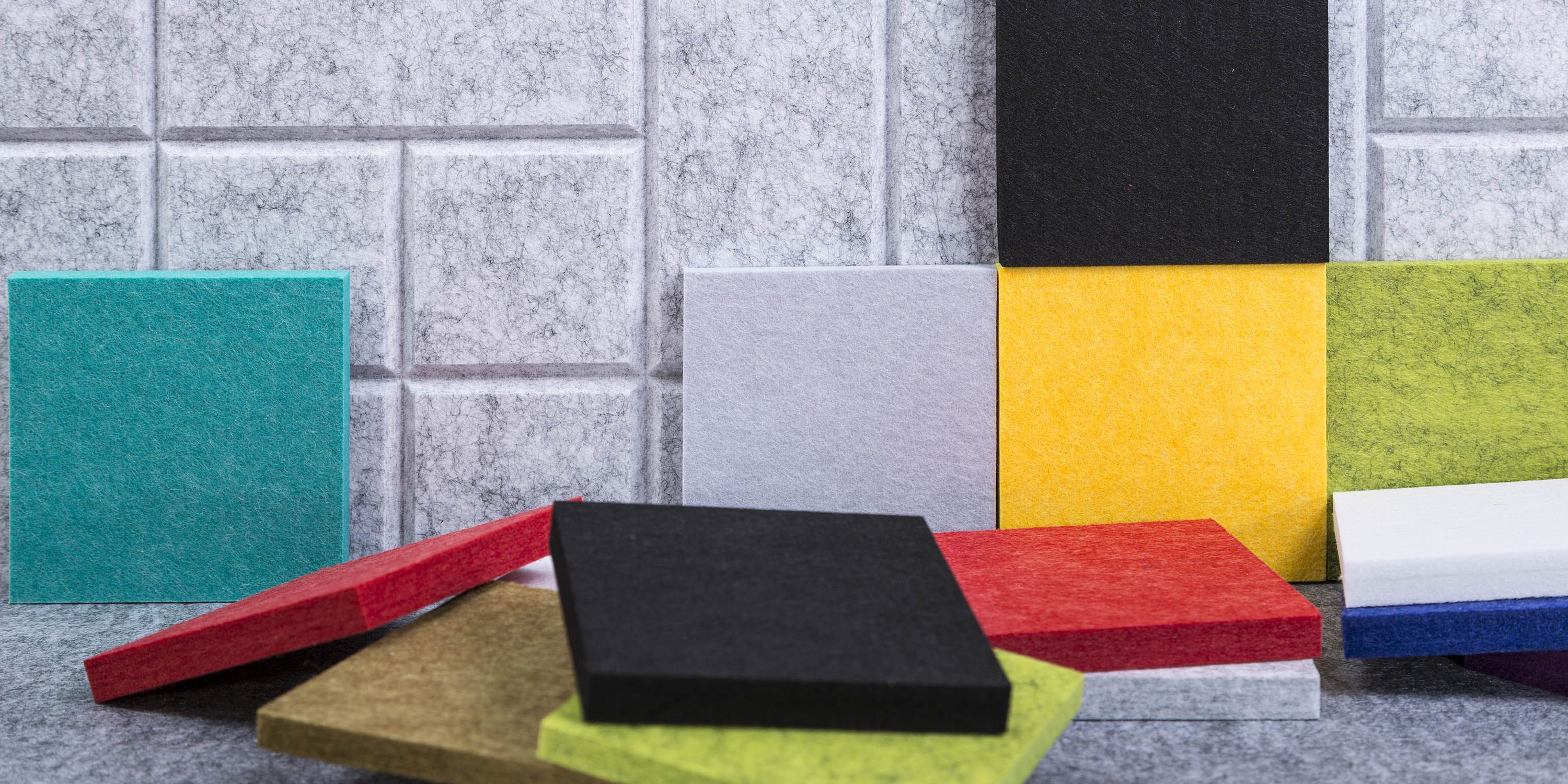

Versatile PET Acoustical wall panel, available in a variety of custom shapes and sizes.



Specifications

  • Panel Sizes: 48” w x 96” h
  • Thickness: 9mm, 12mm
  • 9mm Weight psf:  9mm / .27 lb.
  • 12mm Weight psf:  12mm / .44 lb.


Environmental Factors

  • 100% recyclable
  • Low VOC Emissions
  • ASTM - D5116
  • LEED - MRc4


Composition

  • 100% Polyethylene Terephthalate (PET)
  • 55% recycled content


Fire Rating

  • Class A per ASTM E-84, based on 9mm white
  • CAN/ULC S102 testing available upon request

  Downloads:

Acoustical Data

Frequency (Hz) 125 250 500 1000 2000 4000 NRC
9mm Thickness 0.04 0.04 0.16 0.40 0.63 0.82 0.30
9mm w/ 2" Air Gap 0.07 0.13 0.42 0.79 0.89 0.76 0.55
9mm w/ 4" Air Gap 0.14 0.32 0.73 0.92 0.72 0.88 0.65
18mm Thickness 0.05 0.12 0.39 0.74 0.95 1.04 0.55
  • Board Size 48” x 95-1/4“ #30 Blue, #41 Marigold, #35 Speckled Earth & #34 Pure Gray
  • 9mm is tested as Type “A” Mounting,
  • 9mm w/ 2” gap is tested as Type “F-50” Mounting
  • 9mm w/ 4” gap is tested as Type “F-100” Mounting
  • 18mm is tested as Type “A” Mounting
