Hush Bright Beam™

Lets Do This >

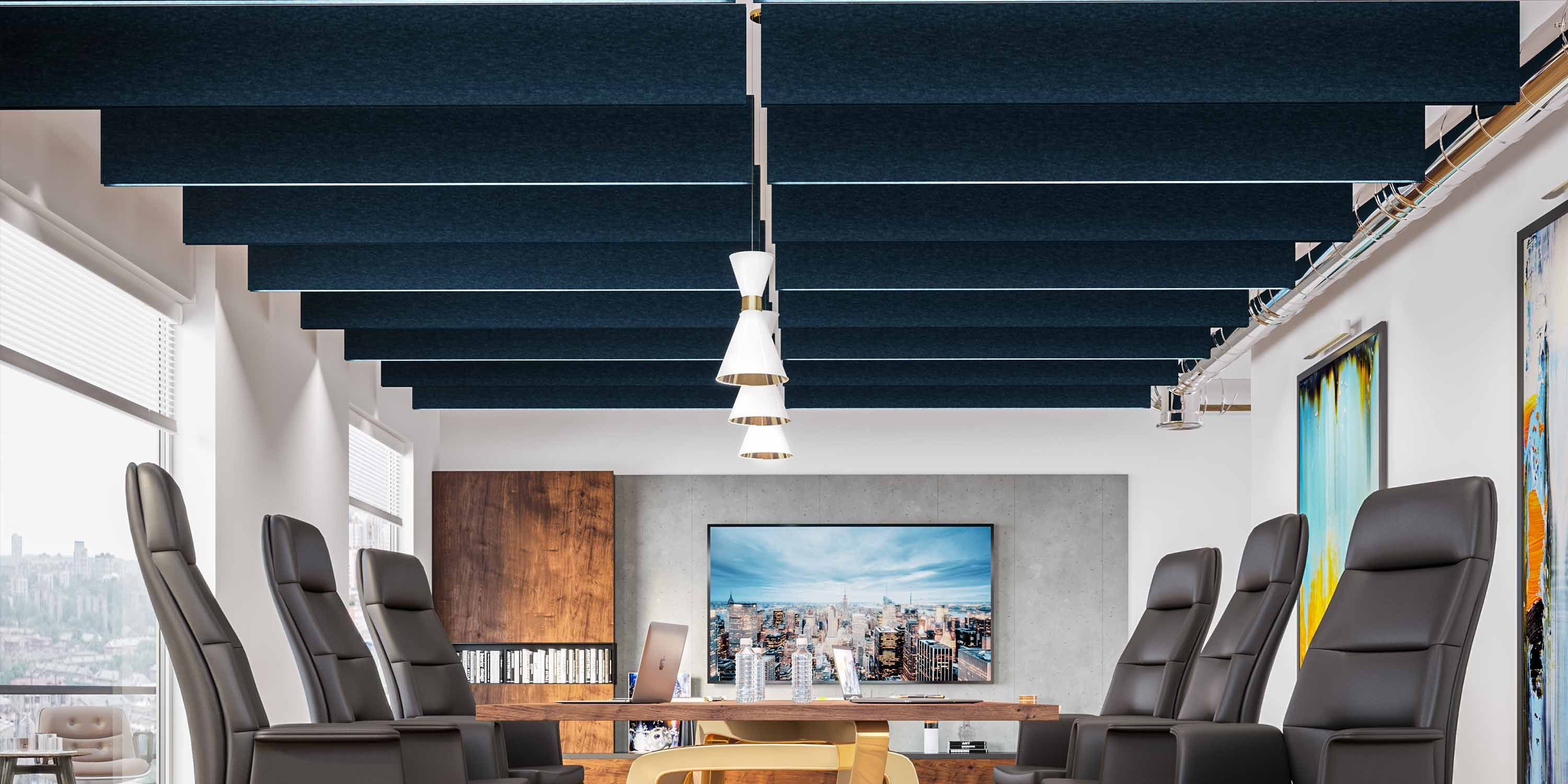

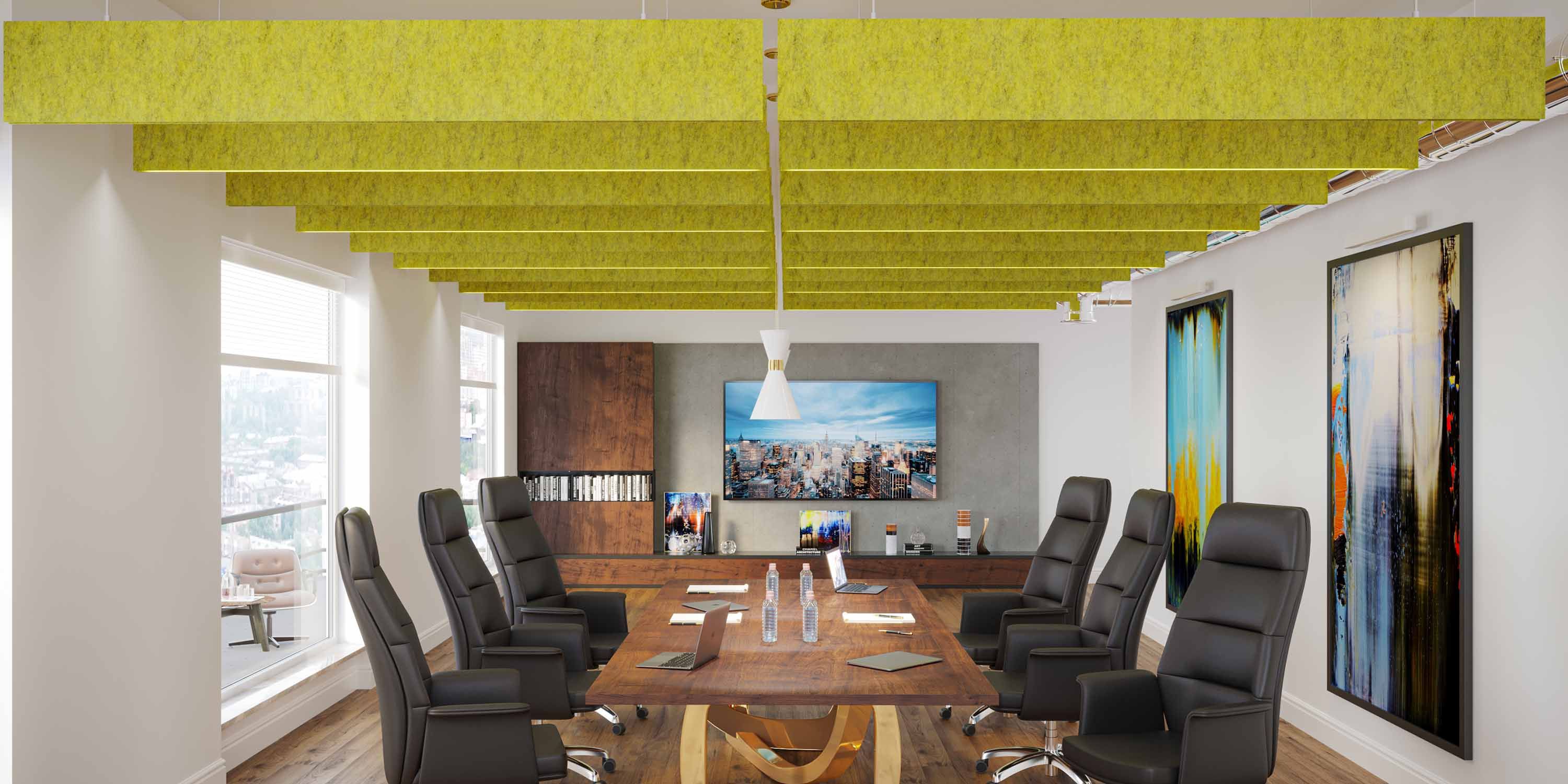

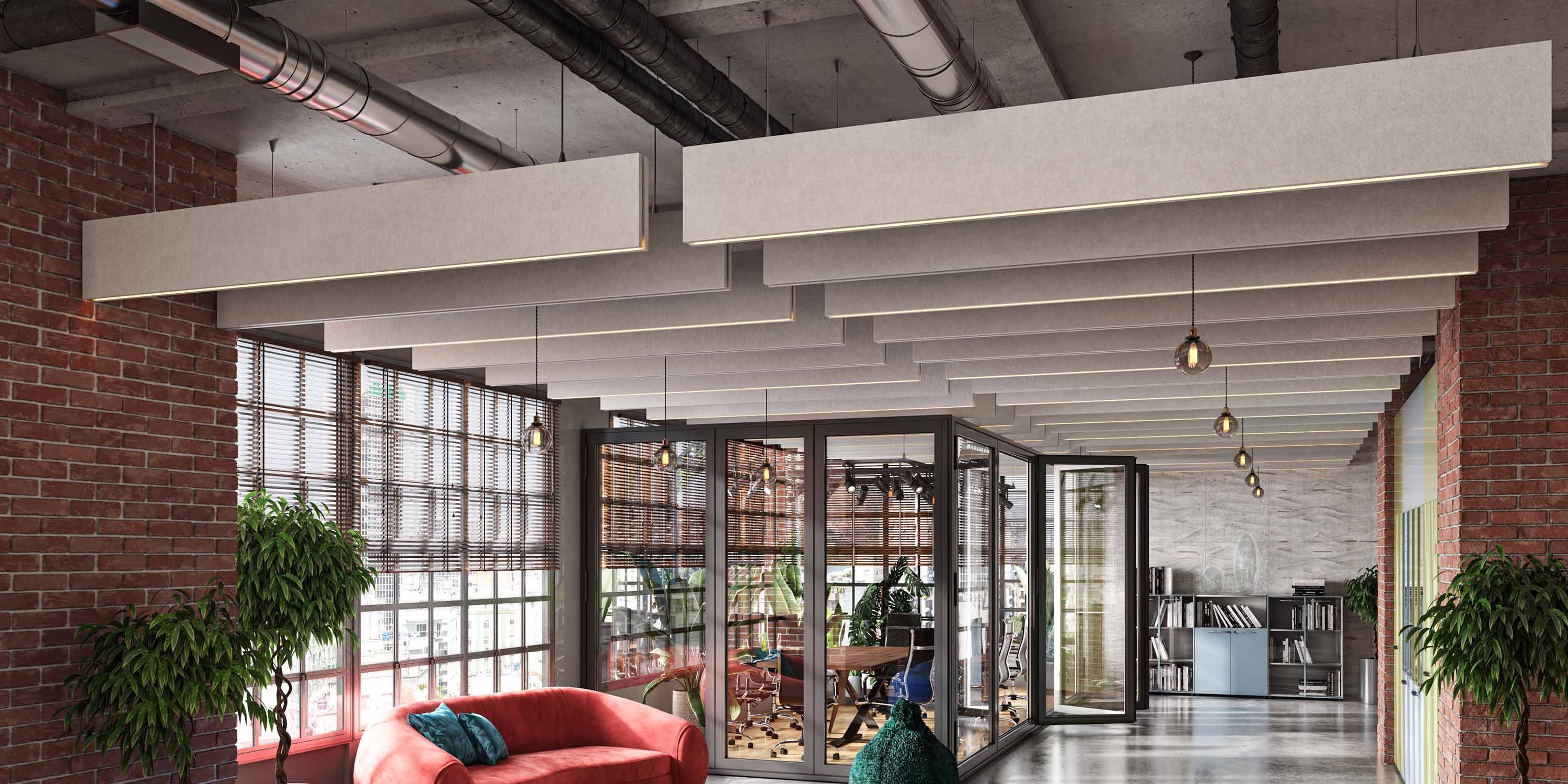

Hang lit acoustical baffles in interior spaces that need to balance acoustic performance and lighting.



Specifications

  • Product Weight: 1.5lbs/SF
  • Length: 4' x 8'
  • Width: 2.75"
  • Height: 12", 16" or 24"


Environmental Factors

  • 100% recyclable
  • Low VOC Emissions
  • ASTM - D5116
  • LEED - MRc4


Composition

  • 100% Polyethylene Terephthalate (PET)
  • 55% recycled content


Fire Rating

  • Class A per ASTM E-84
  • CAN/ULC S102 testing available upon request


Lighting Specs

  • Light Wattage: 56W
  • Color Temperature: 3000k
  • LED Dimmability: 0-10V
  • Lumen: 8800
  • Voltage: 120-277V

  Downloads:

Brochure (2.2 MiB)

Data Sheet (1.9 MiB)

Material Specs (1.8 MiB)

Color Chart (4.0 MiB)

Cleaning Guide (135.6 KiB)

Acoustical Data

Frequency (Hz) 125 250 500 1000 2000 4000 NRC.
2.75" Thickness .53 .74 1.06 1.54 1.77 1.94 1.30
Frequency (Hz) 125 250 500 1000 2000 4000 SABINS
2.75" Thickness 2.94 4.45 7.05 10.62 12.61 13.64

Based on Baffle size 4’ x 2’ with Type “J” Mounting.
Sabins are based on Sabins per Object, NRC is an equivalent number based on one face of one panel
