Sonic Radius Panel

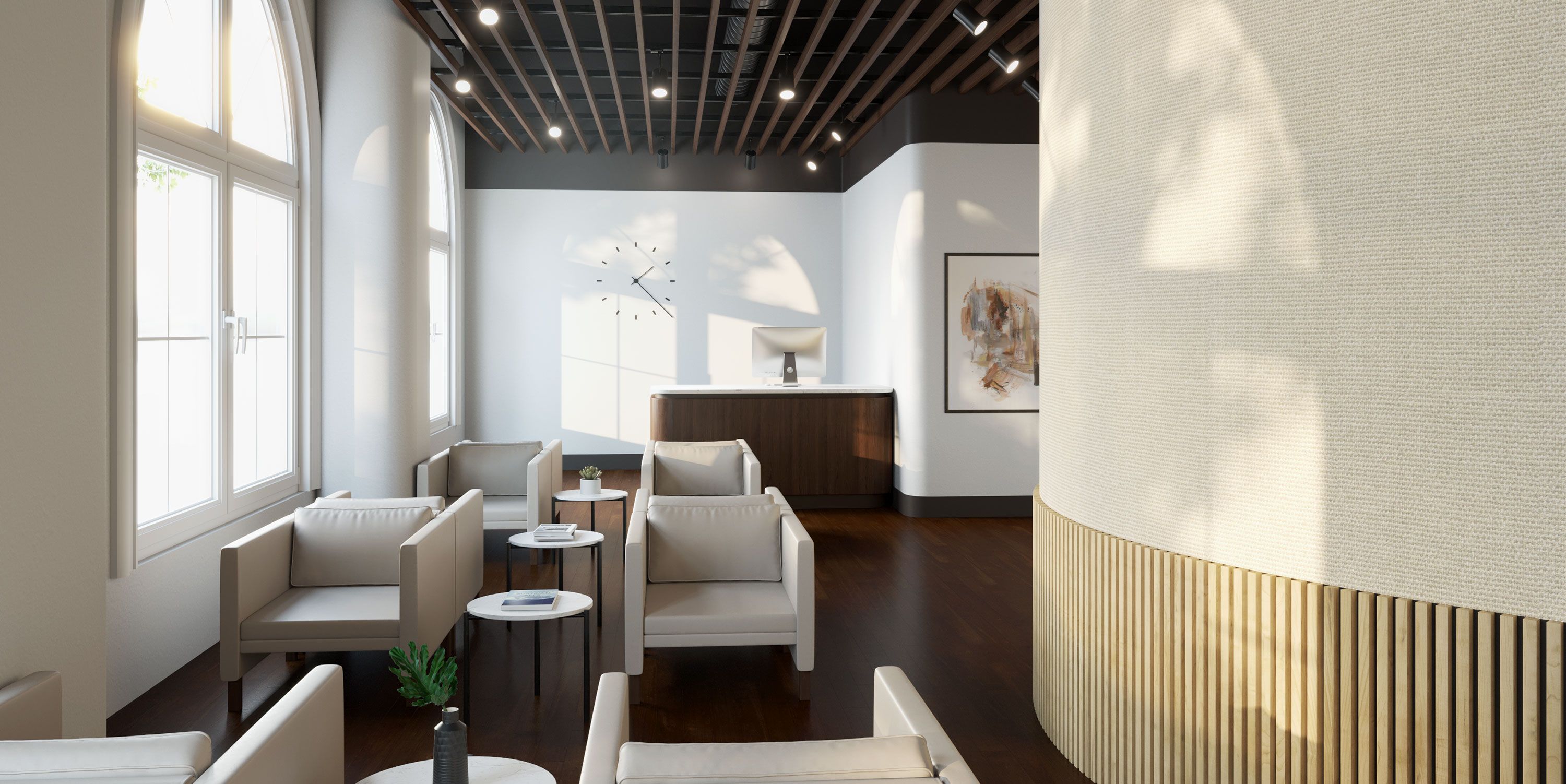

Specifically designed for curved surfaces, convex and concave Radius Acoustical Panels offer performance and aesthetics along difficult-to-cover curved walls or columns. These panels feature a perforated co-polymer facing to provide maximum durability in high-traffic areas.
Specifications
- Custom shapes & sizes available
- Max Size up to 4' x 12'
- Thickness 1 1/16" | 1 9/16" | 2 1/16"
Composition
- 6-7 lb. density rigid fiberglass board
- Perforated co-polymer plastic face for strength
- Back of fiberglass is mechanically scored to aid in flexibility
Finish
- All finishes are reviewed for panel stability
- Resin hardened edges
- Your finish selection bonded directly to panel face with all edges wrapped
- Straight, flat, wrinkle-free surface
- Tailored corners
Fire Rating
- All components are ASTM E84—Class I/A
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|
| 1 1/16" Thickness | 0.15 | 0.32 | 0.88 | 1.18 | 1.16 | 1.06 | 0.90 |
| 2 1/16" Thickness | 0.39 | 0.82 | 1.25 | 1.18 | 1.16 | 1.10 | 1.10 |
Testing performed at an accredited acoustical laboratory within a controlled environment using specific fabric, sizes and mounting. Therefore, ratings may vary slightly depending on customers fabric choice and mounting configuration.
Textbook Textiles
Textbook Textiles fabric line is a textbook example of Lamvin demonstrating its commitment to offering customers beautiful, sustainable and quality products and finishes. With names inspired by the education market, this cost-effective fabric line features a color palette and palatable pricing for schools, government buildings, hospitality settings, commercial spaces, and more. Made in the USA, in stock and ready to ship, Textbook Textiles can be used on any of our Sonic and Sonic Design Form products.
-
083 Sunkist -
084 Back to School -
086 Apple -
089 Charcoal -
090 Blue Jeans -
091 Ballpoint Pen -
093 Field Trip -
094 Rainy Day -
095 Feather -
096 Avocado -
097 Frog -
100 Sharpie -
101 Newsprint -
102 Shadow -
103 Elephant -
104 Vanilla Pudding -
105 Ruler -
106 Chalk -
107 Gym Class -
186 Glue -
187 Sugar -
188 Laptop -
189 Gray Day -
190 Midnight -
191 Gummy Bear -
192 Recess -
193 Swimming Pool -
194 Blue Sky -
195 Mint -
196 Shamrock -
197 Grass -
198 Spelling Bee -
199 Penny -
200 Kickball -
201 Eraser
Mounting Options
Fabric Finishes for Acoustical Panels
Your acoustical panel finish choices are endless. Choose your own material, or here are some links provided to a few of our recommended textile manufacturers for your fabric selection. Please note not all fabrics are suitable for premium acoustical performance.
Select a fabric from one of our manufacturers:
Guilford of Maine
DESIGNTEX
Knoll Textiles
Maharam
Hytex
Koroseal
Luna Textiles
Carnegie Fabrics
