Sonic Design Form® - Diamond

Lets Do This > Download Revit File Visit SpecLink

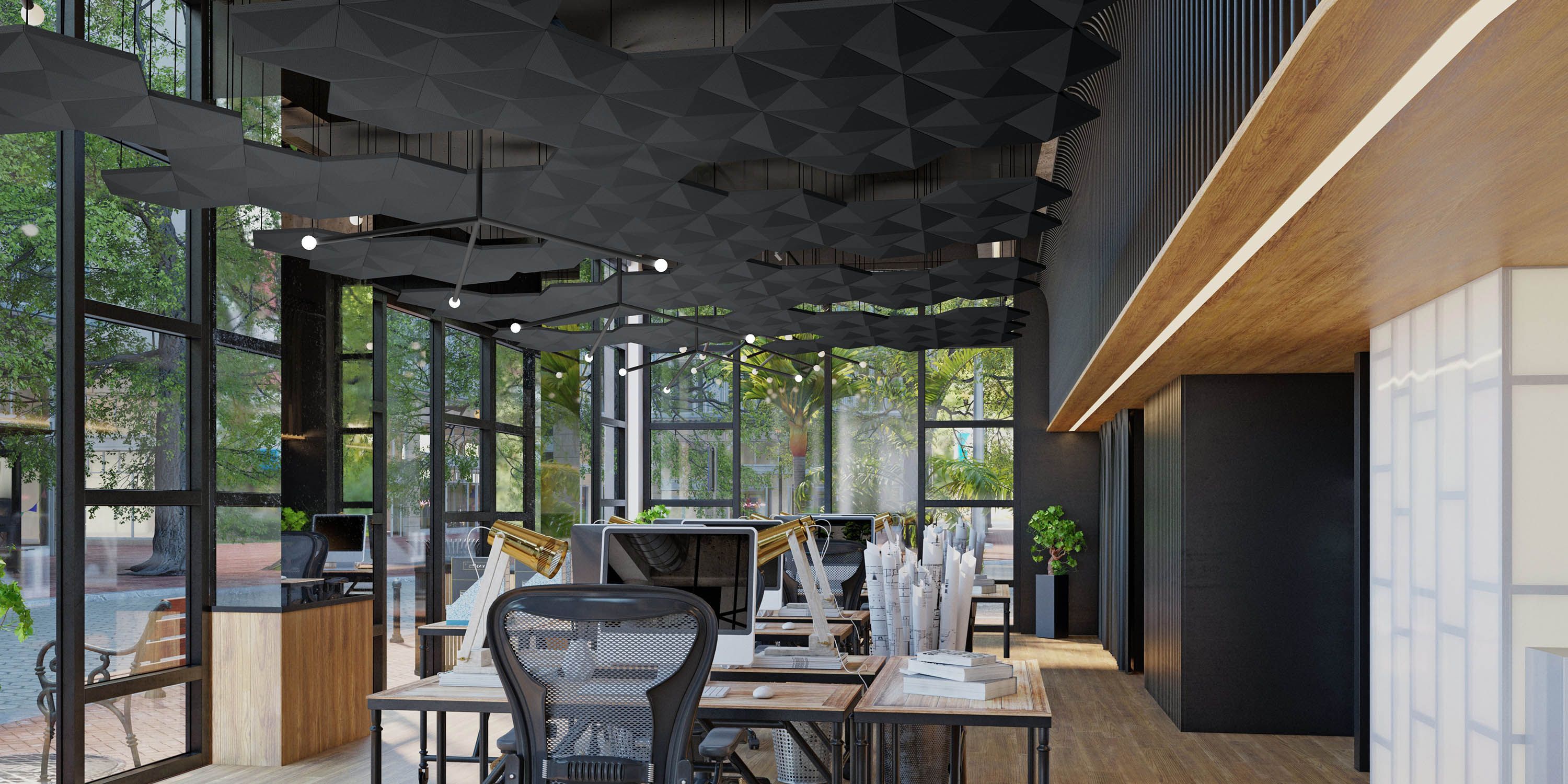

Our Most Versatile Sonic Design Form. These panels offer an array of design possibilities. Whether you’re looking for a unique acoustical solution for the ceilings or walls, the Diamond combines the flexibility of a multitude of configurations and acoustical fabric options.



Specifications

  • 1" Base is 1.25 lb per sf
  • 2" Base is 1.75 lb per sf
  • Available in multiple thicknesses
  • Custom sizes can be special ordered


Fire Rating

  • All components are ASTM E84—Class I/A

  Downloads:

Brochure
Installation Instructions
Color Guide

Acoustical Data

Frequency (Hz) 125 250 500 1000 2000 4000 NRC
Arch Small Size 0.36 0.67 0.98 1.03 0.99 0.96 0.90

Testing performed at an accredited acoustical laboratory within a controlled environment using specific fabric, sizes and mounting. Therefore, ratings may vary slightly depending on customers fabric choice and mounting configuration.

Textbook Textiles

Textbook Textiles fabric line is a textbook example of Lamvin demonstrating its commitment to offering customers beautiful, sustainable and quality products and finishes. With names inspired by the education market, this cost-effective fabric line features a color palette and palatable pricing for schools, government buildings, hospitality settings, commercial spaces, and more. Textbook Textiles can be used on any of our Sonic and Sonic Design Form products.

  • 086 Apple
    086 Apple
  • 089 Charcoal Blue
    089 Charcoal Blue
  • 090 Blue Jeans
    090 Blue Jeans
  • 091 Ballpoint Pen
    091 Ballpoint Pen
  • 095 Feather
    095 Feather
  • 096 Avocado
    096 Avocado
  • 097 Frog
    097 Frog
  • 100 Sharpie
    100 Sharpie
  • 101 Newsprint
    101 Newsprint
  • 102 Shadow
    102 Shadow
  • 103 Elephant
    103 Elephant
  • 104 Vanilla Pudding
    104 Vanilla Pudding
  • 105 Ruler
    105 Ruler
  • 106 Chalk
    106 Chalk
  • 107 Gym Class
    107 Gym Class
  • 186 Glue
    186 Glue
  • 187 Sugar
    187 Sugar
  • 188 Laptop
    188 Laptop
  • 189 Gray Day
    189 Gray Day
  • 190 Midnight
    190 Midnight
  • 191 Gummy Bear
    191 Gummy Bear
  • 193 Swimming Pool
    193 Swimming Pool
  • 194 Blue Sky
    194 Blue Sky
  • 200 Kickball
    200 Kickball

Mounting Options

  • Ceiling Cloud L Bracket
    L Bracket (Ceilings)
  • Impailing Clips
    Impailing Clips with Adhesive (Walls)
  • Roto Snap-On
    Roto Snap-On Anchor (Walls)

Fabric Finishes for Acoustical Panels

Your acoustical panel finish choices are endless. Choose your own material, or here are some links provided to a few of our recommended textile manufactures for your fabric selection. Please note not all fabrics are suitable for premium acoustical performance.

Select a fabric from one of our manufacturers:

Guilford of Maine
DESIGNTEX
Knoll Textiles
Maharam
Hytex
Koroseal
Luna Textiles
Carnegie Fabrics
