Sonic Tackable
High-Impact Acoustic Panel
Lets Do This > Download Revit File Visit SpecLink

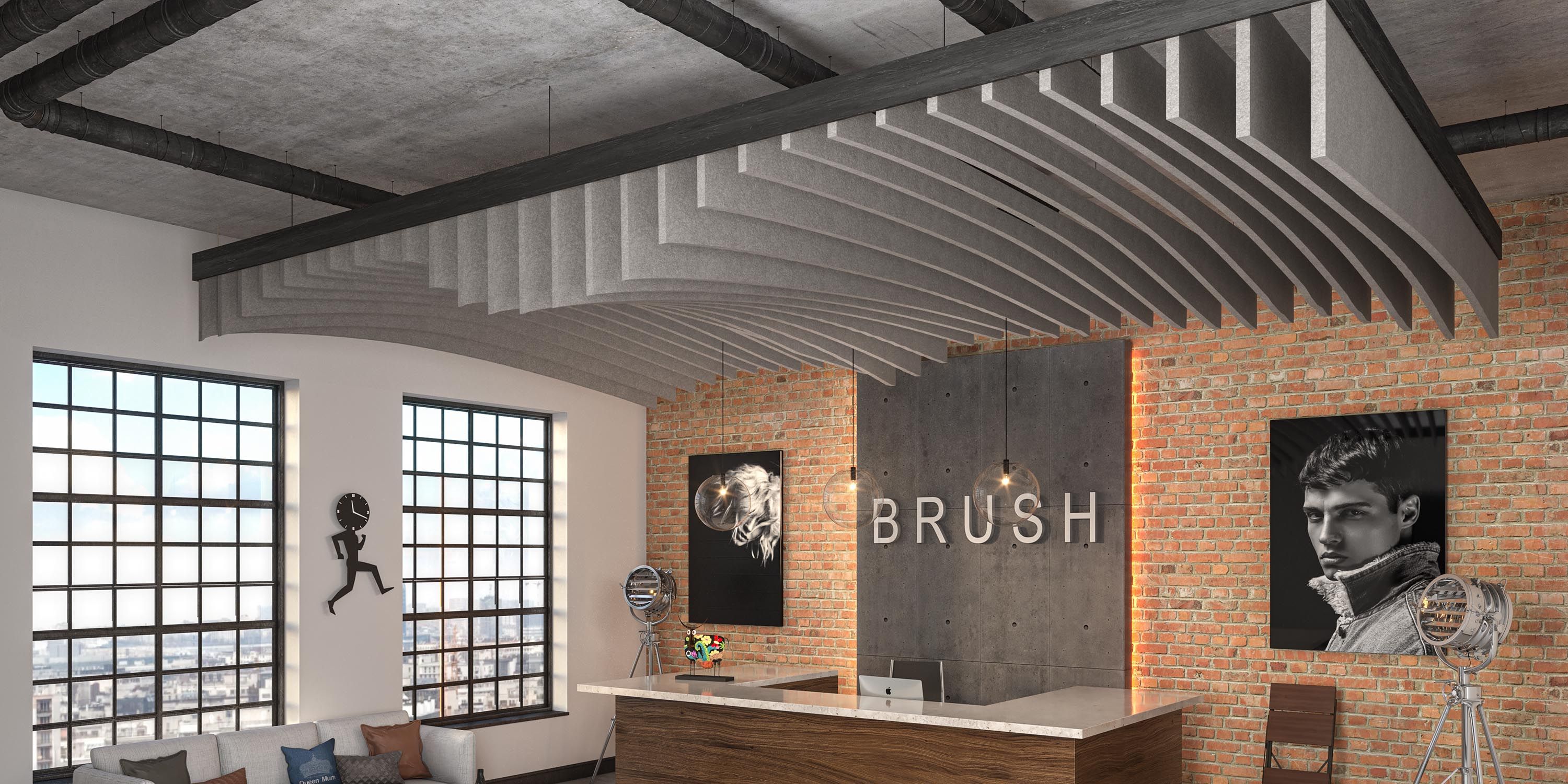

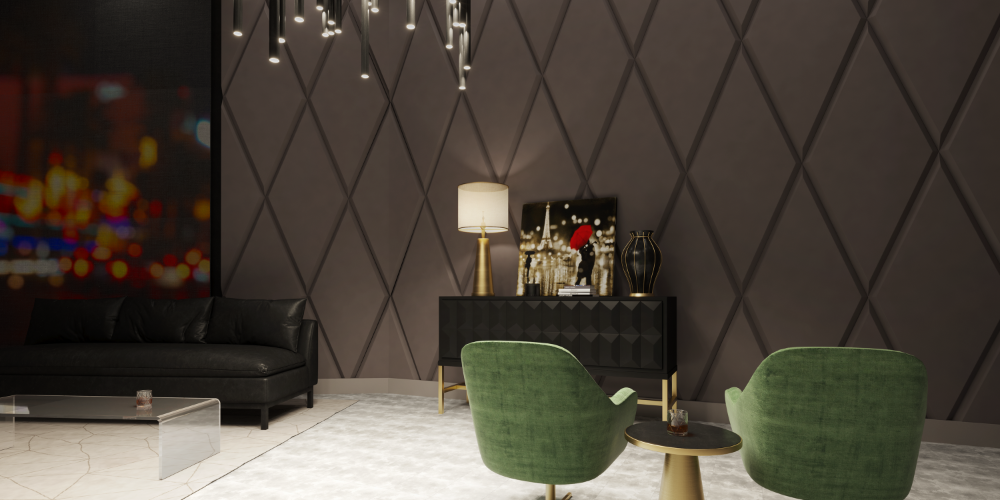

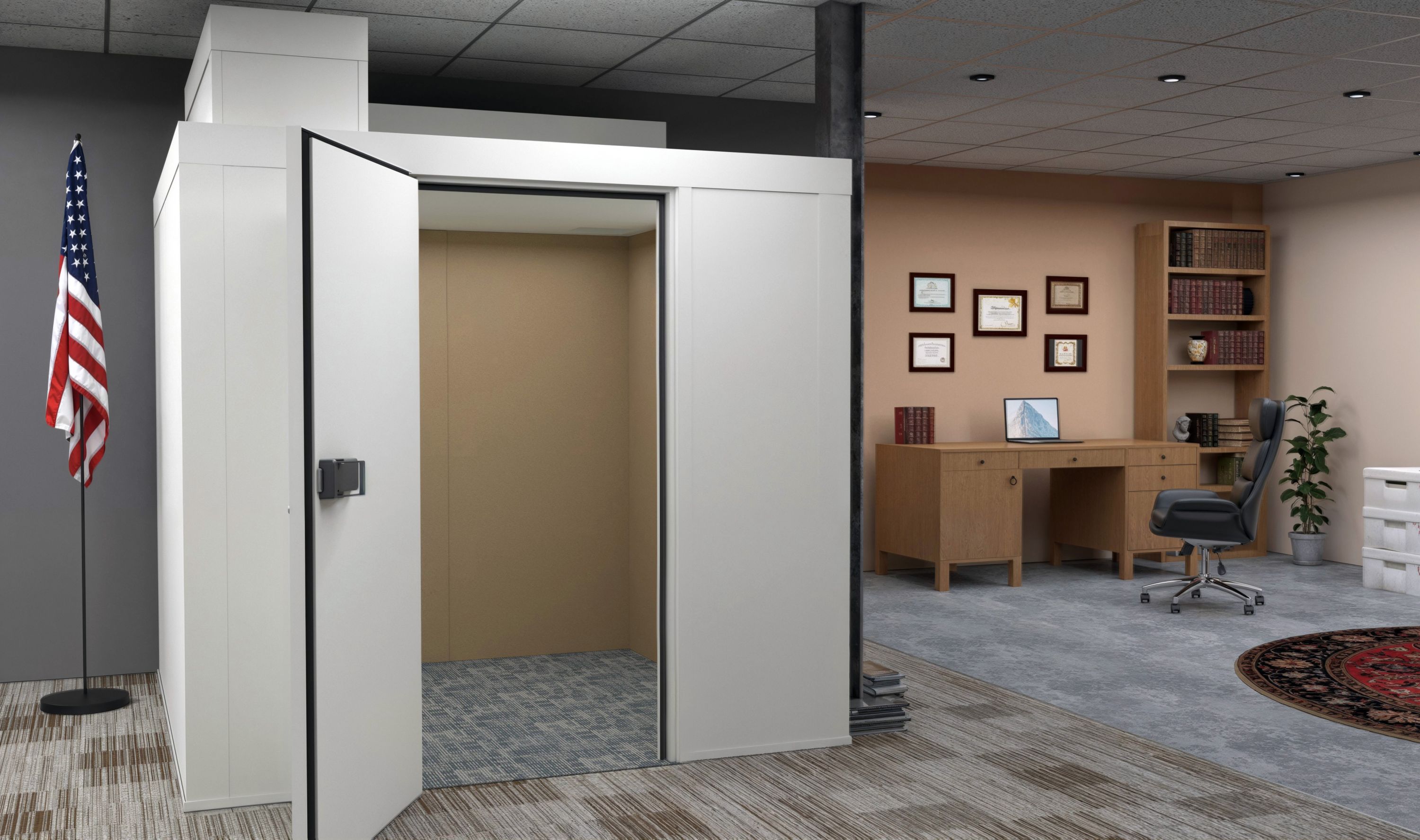

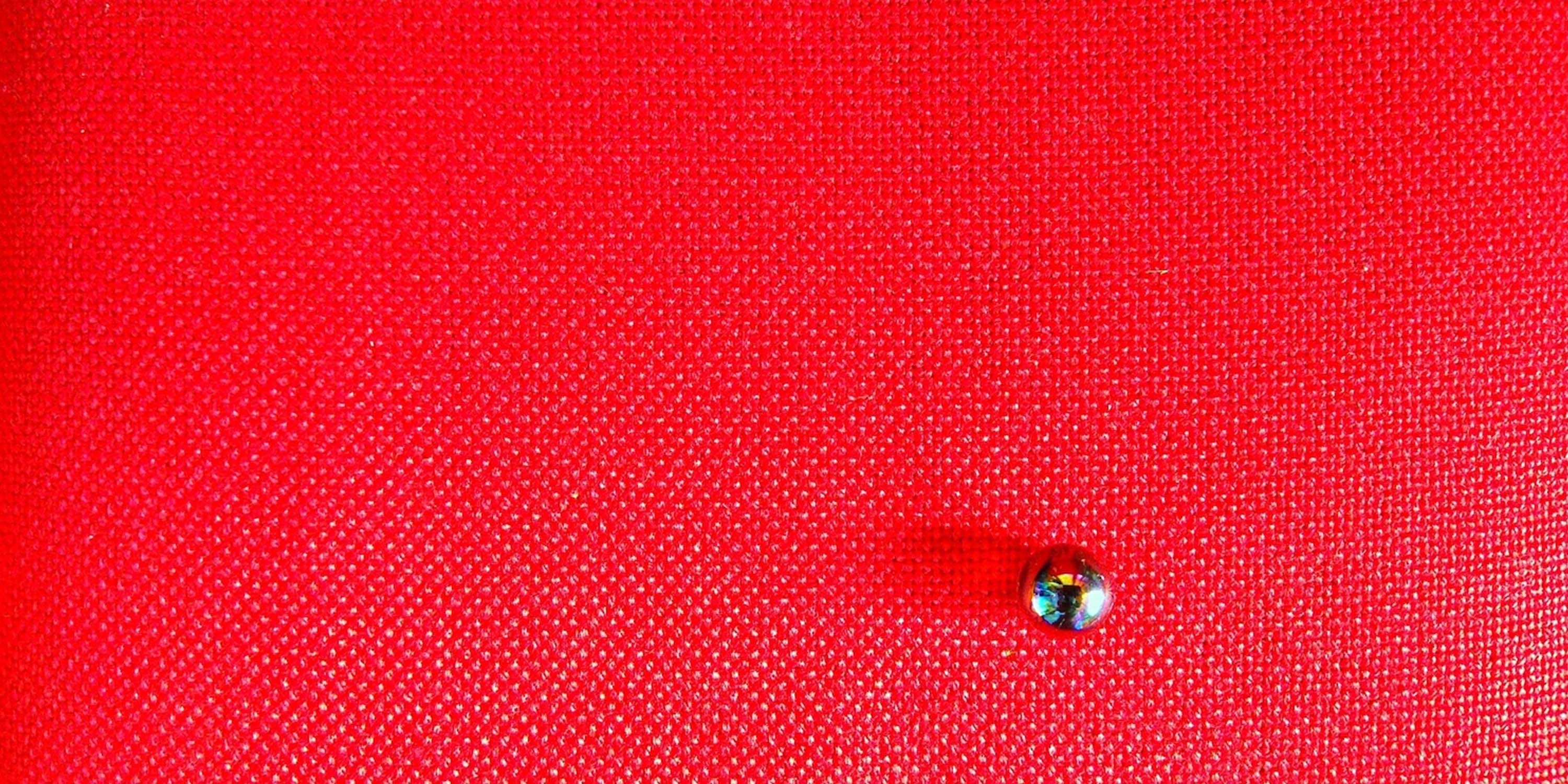

Our Sonic Tackable High-Impact Panel is designed specifically for easy tackability and for use in high-traffic areas. This tough panel will meet all your acoustical challenges. Featuring a high-density fiberglass face, this panel is equally suited for walls or ceilings and can be customized in a variety of ways.
Specifications
- Custom shapes and sizes
- Max Size up to 5' x 10'
- Thickness 5/8" to 4 1/8"
Composition
- 6-7 lb. density rigid fiberglass board
- 1/8" high density fiberglass face
- Resin hardened edges
Finish
- All finishes are reviewed for panel stability
- Your finish selection bonded directly to panel face with all edges wrapped
- Straight, flat, wrinkle-free surface
- Tailored corners
Fire Rating
- All components are ASTM E84—Class I/A
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|
| 1/2" Thickness | .04 | .09 | .35 | .81 | .94 | .99 | .55 |
| 3/4" Thickness | .05 | .19 | .46 | .85 | .97 | .97 | .60 |
| 1" Thickness | .19 | .44 | 1.00 | 1.06 | 1.00 | 1.05 | .90 |
| 1 1/2" Thickness | .24 | .68 | 1.07 | .99 | 1.00 | 1.02 | .95 |
| 2" Thickness | .38 | .79 | 1.08 | 1.02 | 1.01 | 1.05 | 1.00 |
| 4" Thickness | .63 | 1.41 | 1.33 | 1.33 | 1.23 | 1.20 | 1.35 |
Testing performed at an accredited acoustical laboratory within a controlled environment using specific fabric, sizes and mounting. Therefore, ratings may vary slightly depending on customers fabric choice and mounting configuration.
Textbook Textiles
Textbook Textiles fabric line is a textbook example of Lamvin demonstrating its commitment to offering customers beautiful, sustainable and quality products and finishes. With names inspired by the education market, this cost-effective fabric line features a color palette and palatable pricing for schools, government buildings, hospitality settings, commercial spaces, and more. Textbook Textiles can be used on any of our Sonic and Sonic Design Form products.
-
086 Apple -
089 Charcoal Blue -
090 Blue Jeans -
091 Ballpoint Pen -
095 Feather -
096 Avocado -
097 Frog -
100 Sharpie -
101 Newsprint -
102 Shadow -
103 Elephant -
104 Vanilla Pudding -
105 Ruler -
106 Chalk -
107 Gym Class -
186 Glue -
187 Sugar -
188 Laptop -
189 Gray Day -
190 Midnight -
191 Gummy Bear -
193 Swimming Pool -
194 Blue Sky -
200 Kickball
Mounting Options
-
Z-Clip/Rail/Velcro (Walls) -
Z-Clip/Velcro (Walls) -
Z-Clip/Z-Rail (Walls) -
Impailing Clips with Adhesive (Walls) -
Roto Snap-On Anchor (Walls)
Edge Details
-
Bevel -
Mitered -
Pencil -
Radius -
Square -
Tegular -
Bevel -
Miter -
Pencil -
Radius -
Square -
Tegular
