Sonic Design Form® - Plank
Lets Do This > Download Revit File Visit SpecLink

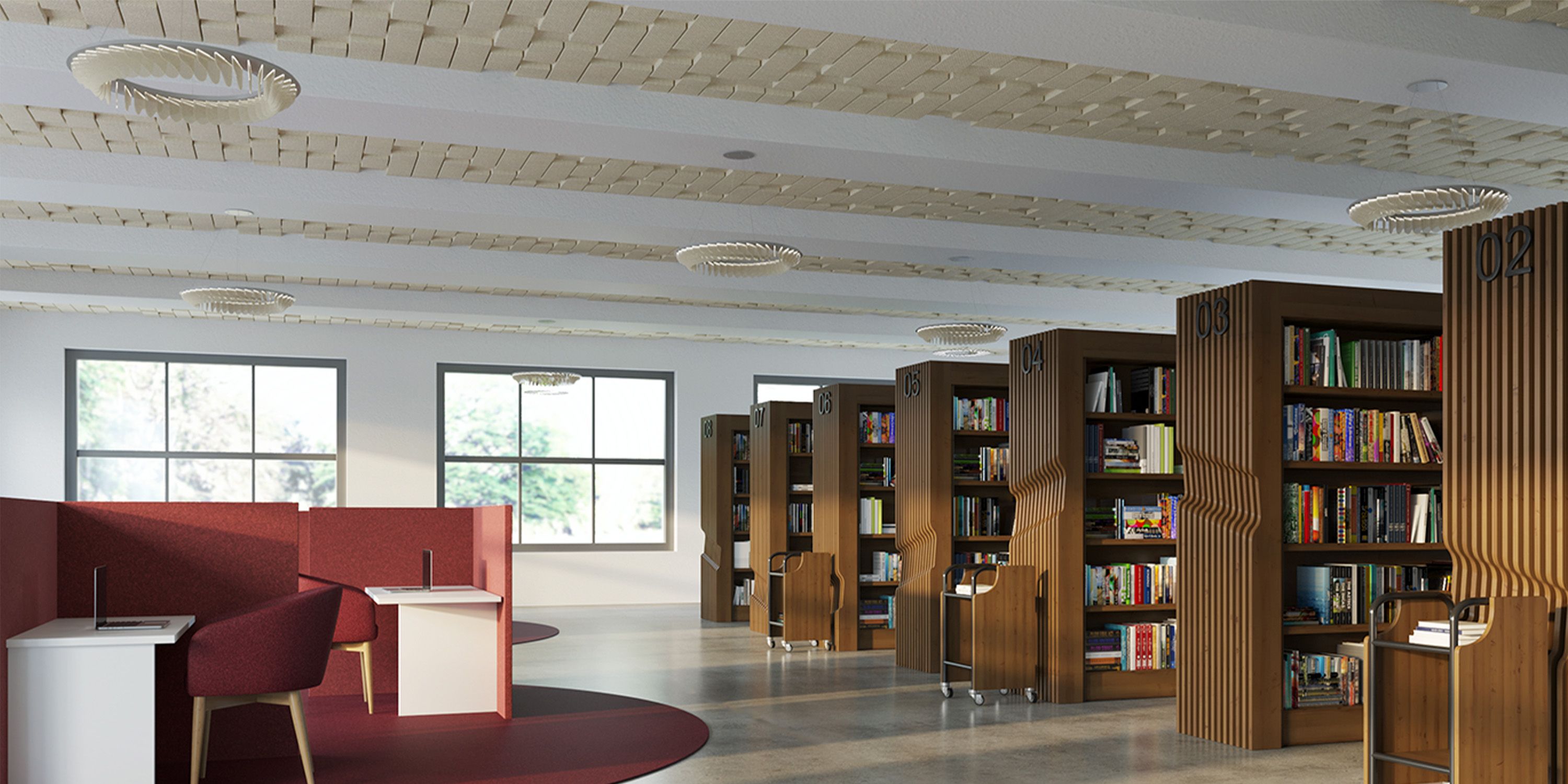

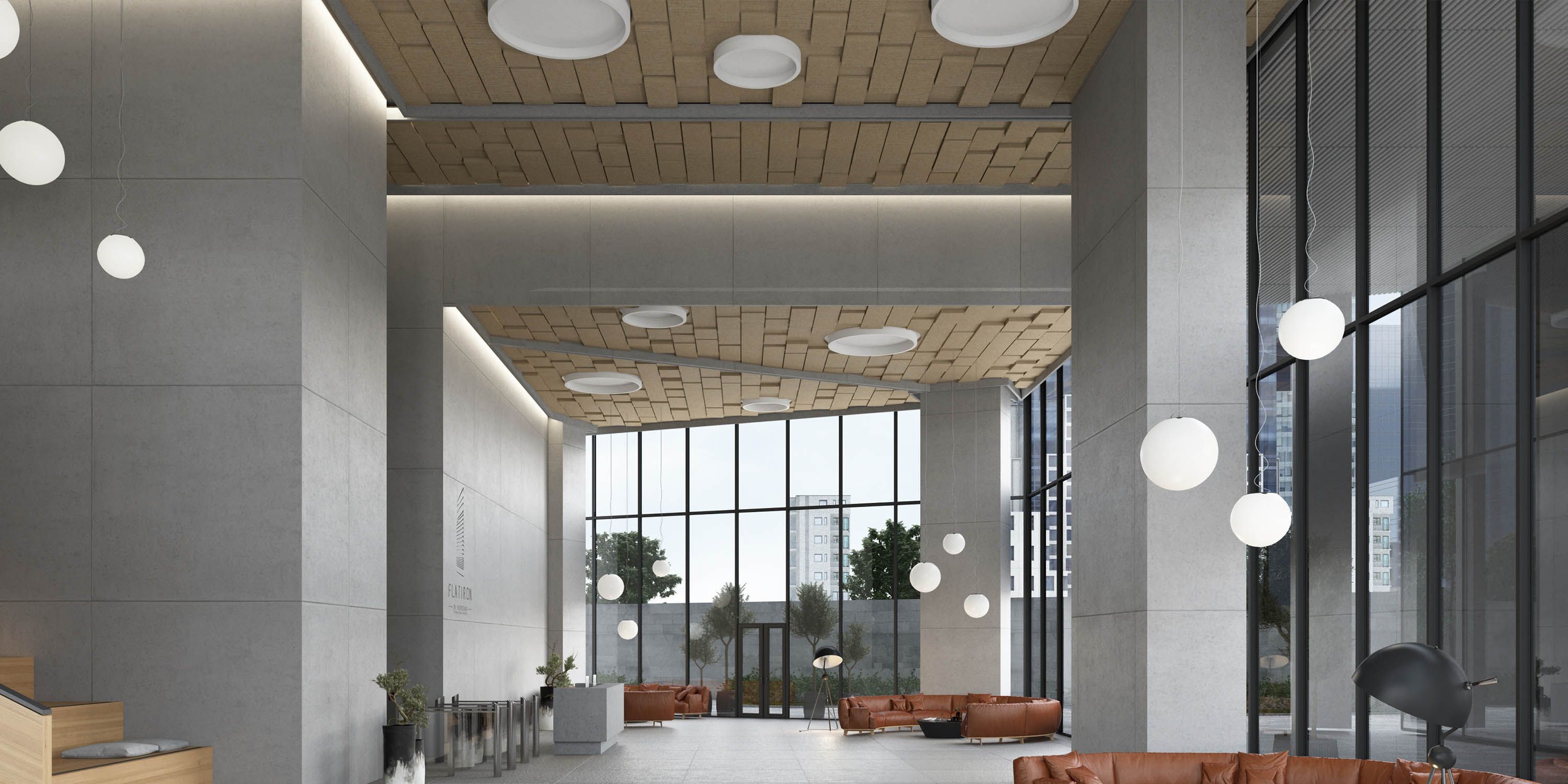

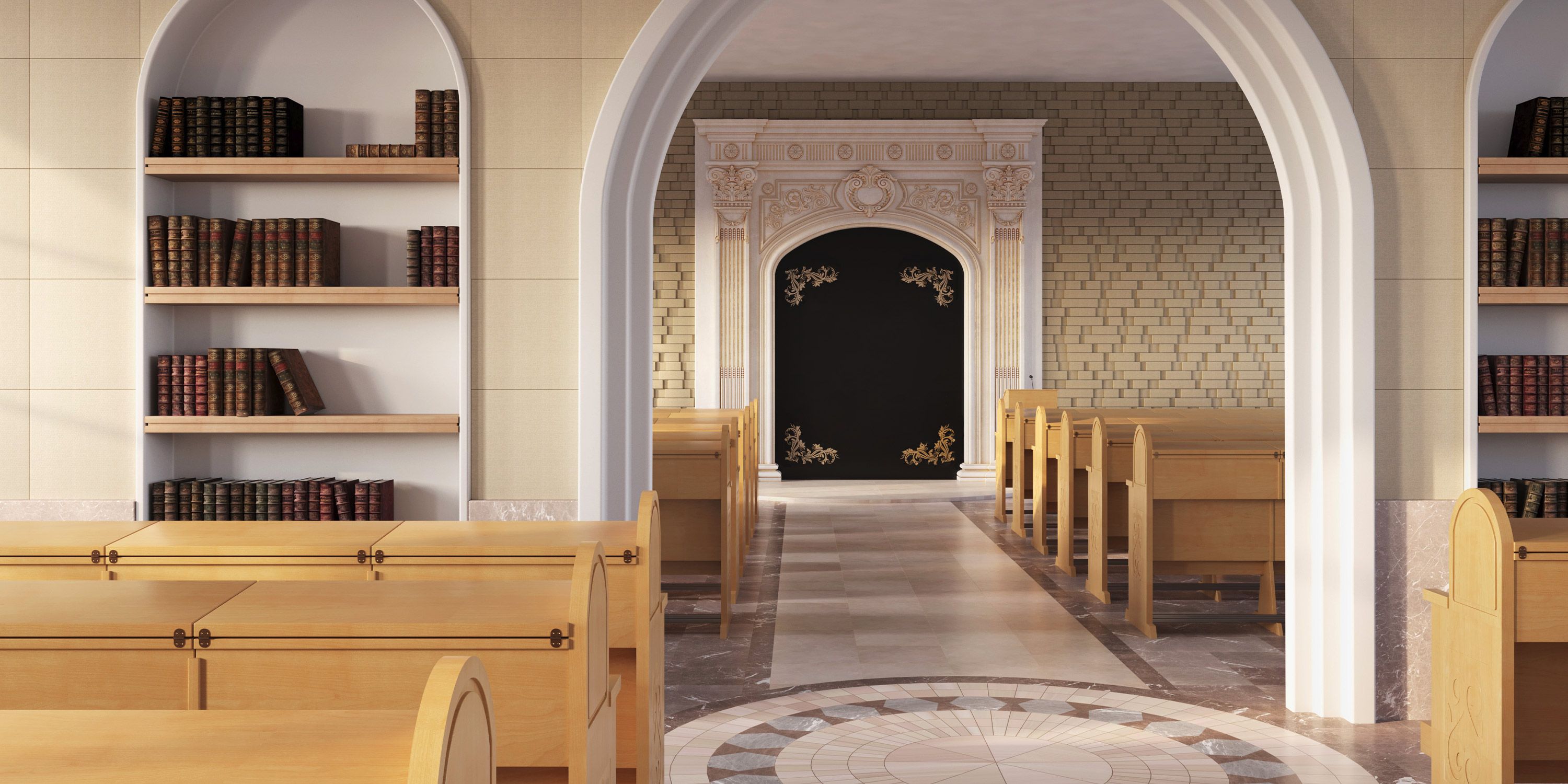

Fun And Flexible. If you’re looking for a unique way to introduce texture to a room, the Sonic Design Form® Plank provides just that. You can combine these boards in different configurations and lay them out vertically or horizontally. These can be covered in acoustical fabric or wood veneer offering you endless design options.
Specifications
- Available in multiple sizes
- 1" and 2" thicknesses available
- Can be configured to create unique horizontal or vertical patterns

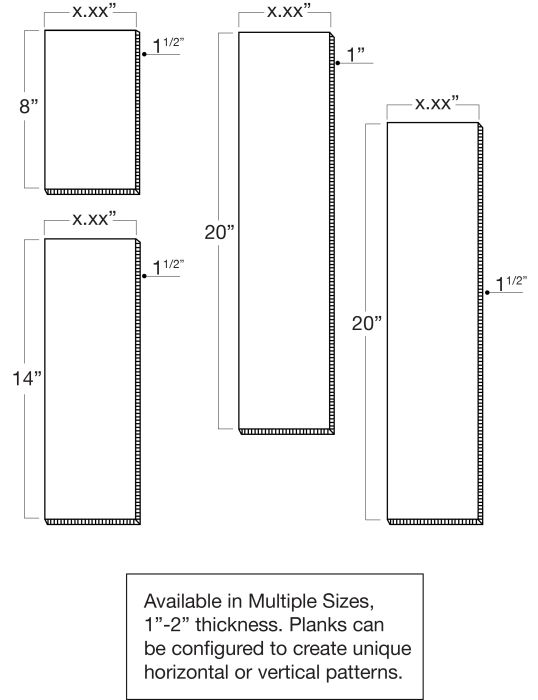

Shape Dimensions
Fire Rating
- All components are ASTM E84—Class I/A
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|
| 1/2" Thickness | 0.04 | 0.09 | 0.35 | 0.81 | 0.94 | 0.99 | 0.55 |
| 3/4" Thickness | 0.05 | 0.19 | 0.46 | 0.85 | 0.97 | 0.97 | 0.60 |
| 1" Thickness | 0.19 | 0.44 | 1.00 | 1.06 | 1.00 | 1.05 | 0.90 |
| 1 1/2" Thickness | 0.24 | 0.68 | 1.07 | 0.99 | 1.00 | 1.02 | 0.95 |
| 2" Thickness | 0.38 | 0.79 | 1.08 | 1.02 | 1.01 | 1.05 | 1.00 |
| 4" Thickness | 0.63 | 1.41 | 1.33 | 1.33 | 1.23 | 1.20 | 1.35 |
Testing performed at an accredited acoustical laboratory within a controlled environment using specific fabric, sizes and mounting. Therefore, ratings may vary slightly depending on customers fabric choice and mounting configuration.
Textbook Textiles
Textbook Textiles fabric line is a textbook example of Lamvin demonstrating its commitment to offering customers beautiful, sustainable and quality products and finishes. With names inspired by the education market, this cost-effective fabric line features a color palette and palatable pricing for schools, government buildings, hospitality settings, commercial spaces, and more. Made in the USA, in stock and ready to ship, Textbook Textiles can be used on any of our Sonic and Sonic Design Form products.
-
083 Sunkist -
084 Back to School -
086 Apple -
089 Charcoal -
090 Blue Jeans -
091 Ballpoint Pen -
093 Field Trip -
094 Rainy Day -
095 Feather -
096 Avocado -
097 Frog -
100 Sharpie -
101 Newsprint -
102 Shadow -
103 Elephant -
104 Vanilla Pudding -
105 Ruler -
106 Chalk -
107 Gym Class -
186 Glue -
187 Sugar -
188 Laptop -
189 Gray Day -
190 Midnight -
191 Gummy Bear -
192 Recess -
193 Swimming Pool -
194 Blue Sky -
195 Mint -
196 Shamrock -
197 Grass -
198 Spelling Bee -
199 Penny -
200 Kickball -
201 Eraser
Fabric Finishes for Acoustical Panels
Your acoustical panel finish choices are endless. Choose your own material, or here are some links provided to a few of our recommended textile manufactures for your fabric selection. Please note not all fabrics are suitable for premium acoustical performance.
Select a fabric from one of our manufacturers:
Guilford of Maine
DESIGNTEX
Knoll Textiles
Maharam
Hytex
Koroseal
Luna Textiles
Carnegie Fabrics
