Sonic Single Core Hanging Acoustical Baffle

Lets Do This > Visit SpecLink

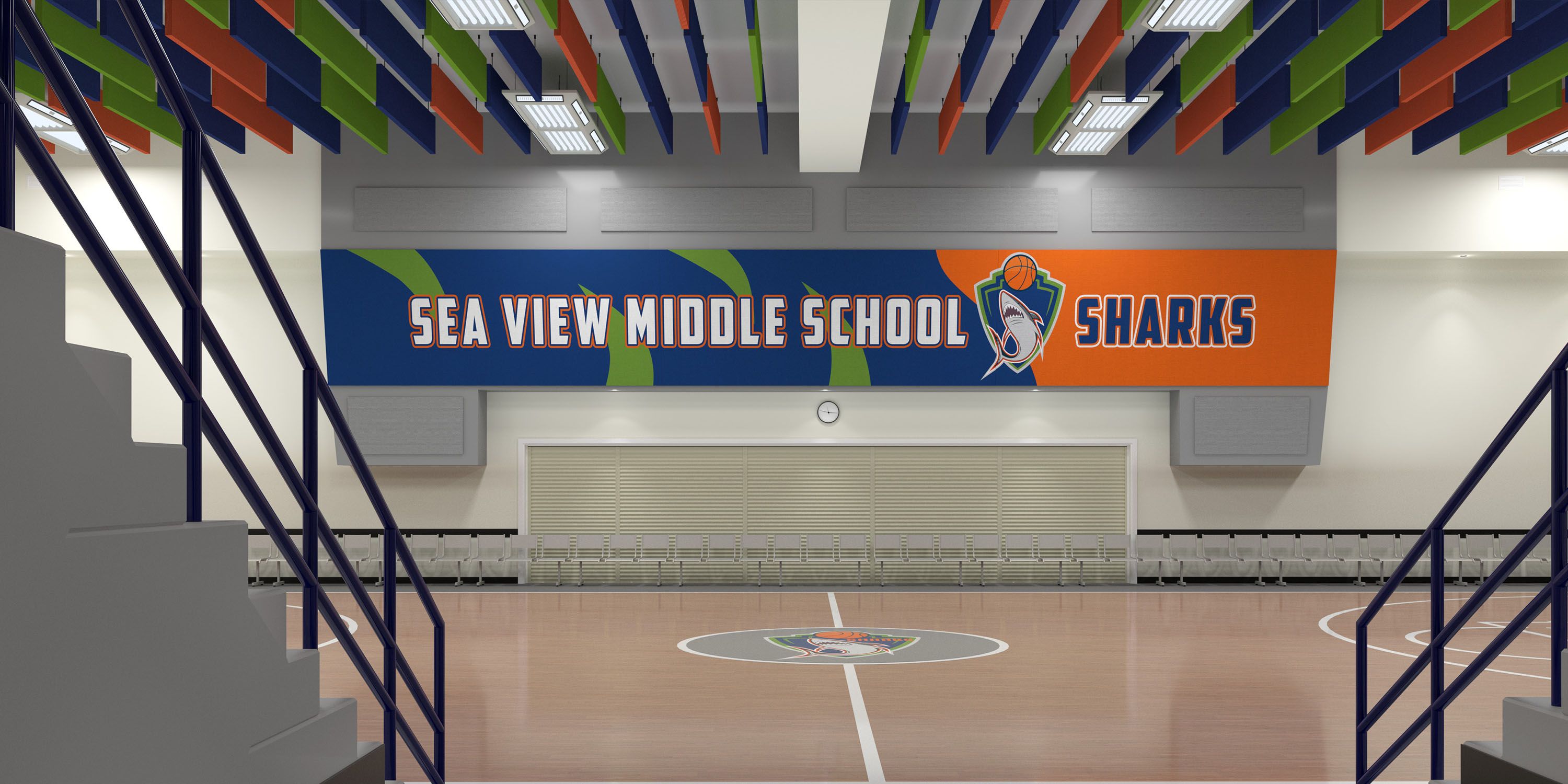

With your choice of finish carefully and skillfully wrapped around this solid baffle to hide all seams, Sonic Core offers a seamless design to reduce reverb and echoes in large open areas. The Sonic Single Core Hanging Baffles improve speech intelligibility creating an intimate acoustical ambiance in mid-sized rooms and clearer voice transmission in larger rooms. Vertically hanging acoustical baffles are made to complement the décor of any room both visually and acoustically.



Specifications

  • Custom shapes, sizes and designs
  • Thickness 1" | 1 1/2" | 2"


Composition

  • 6-7 lb. density rigid fiberglass board
  • Secured to a hardwood mounting ridge
  • Thin scrim covering
  • Resin hardened edges


Finish

  • All finishes are reviewed for panel stability
  • Your finish selection bonded directly panel face with all edges wrapped
  • Straight, flat, wrinkle-free surface
  • Tailored corners


Fire Rating

  • All components are ASTM E84—Class I/A

  Downloads:

Acoustical Data

Sabins: 12.0 based on a 24 ” x 48″ baffle

Fire Test: All components are ASTM E84—Class I/A

2″ SIngle Core Baffle:

Per independent ASTM D 1037-12 testing, Lamvin’s 2” Single Core Baffles withstand an average peak load of 335 lbs. per installation hardware attachment.

A 2” Single Core Baffle weighs 1.69 lbs per square foot, or 54 lbs for a 4’ x 8’ baffle. This translates to a safety ratio 6.2:1 per installation point, and an overall rating of 18.6:1.

Fabric Finishes for Acoustical Panels

Your acoustical panel finish choices are endless. Choose your own material, or here are some links provided to a few of our recommended textile manufactures for your fabric selection. Please note not all fabrics are suitable for premium acoustical performance.

Select a fabric from one of our manufacturers:

Guilford of Maine
DESIGNTEX
Knoll Textiles
Maharam
Hytex
Koroseal
Luna Textiles
Carnegie Fabrics
