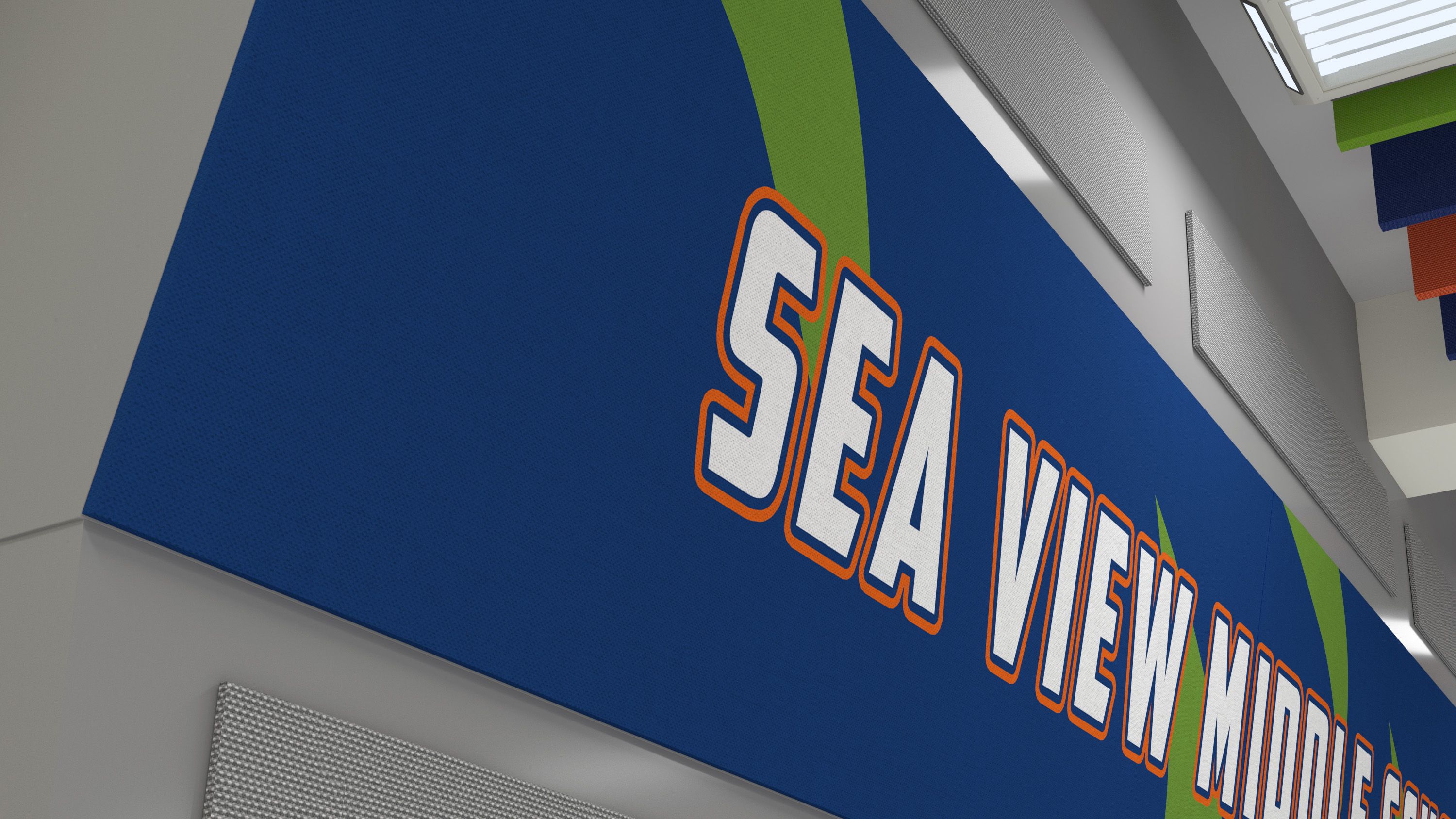

Sonic Ultra High-Impact Panel
Lets Do This > Download Revit File Visit SpecLink
With a strong co-polymer face, the Sonic Ultra High-Impact Panel is the most durable of our fabric-covered panels. Ideal for noise absorption in high abuse areas. Sturdy yet provides the visually soft, soothing, aesthetics with fabric on the finish.
Specifications
- Custom shapes and sizes
- Max Size up to 4' x 12'
- Thickness 1 1/16" | 1 9/16" | 2 1/16"
Composition
- 6-7 lb. density rigid fiberglass board
- A 1/16″ perforated copolymer plastic face
- Facing has 3/32″ diameter holes on 5/32″ staggered centers with 33% open area for sound absorption
Finish
- All finishes are reviewed for panel stability
- Resin hardened edges
- Your finish selection bonded directly to panel face with all edges wrapped
- Straight, flat, wrinkle-free surface
- Tailored corners
Fire Rating
- All components are ASTM E84—Class I/A
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|
| 1 1/16" Thickness | .15 | .32 | 0.88 | 1.18 | 1.16 | 1.06 | .90 |
| 2 1/16" Thickness | .39 | 0.82 | 1.25 | 1.18 | 1.16 | 1.10 | 1.10 |
Testing performed at an accredited acoustical laboratory within a controlled environment using specific fabric, sizes and mounting. Therefore, ratings may vary slightly depending on customers fabric choice and mounting configuration.
Guilford of Maine - FR 701® Style 2100
The acoustic standard for over 40 years, this panel fabric’s heathered wool-like appearance brings an artisan allure to any environment.
Fabric Finishes for Acoustical Panels
Your acoustical panel finish choices are endless. Choose your own material, or here are some links provided to a few of our recommended textile manufacturers for your fabric selection. Please note not all fabrics are suitable for premium acoustical performance.
Select a fabric from one of our manufacturers:
Guilford of Maine
DESIGNTEX
Knoll Textiles
Maharam
Hytex
Koroseal
Luna Textiles
Carnegie Fabrics
