Sonic Suspended Acoustic Ceiling Clouds

Lets Do This > Visit SpecLink

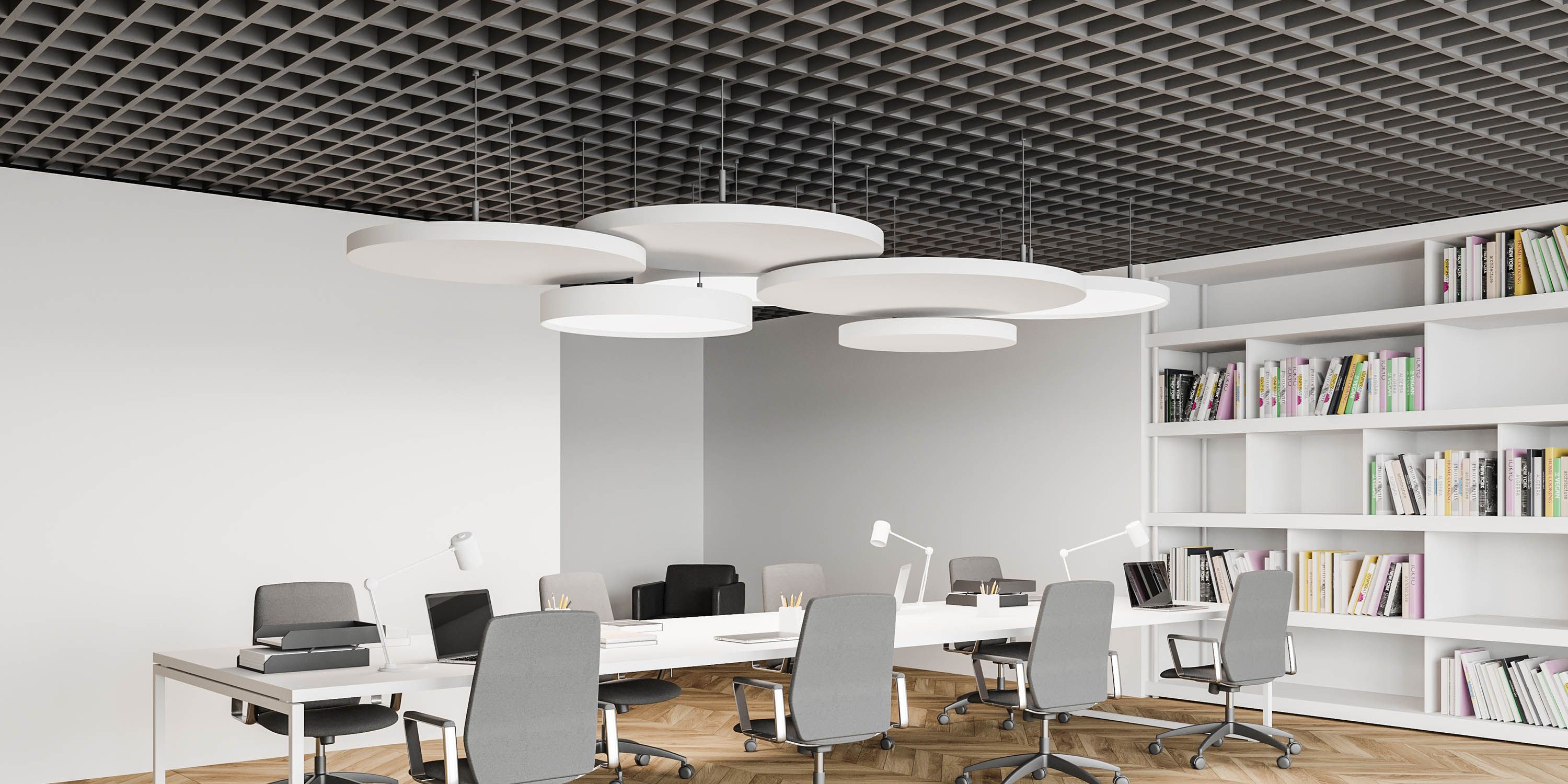

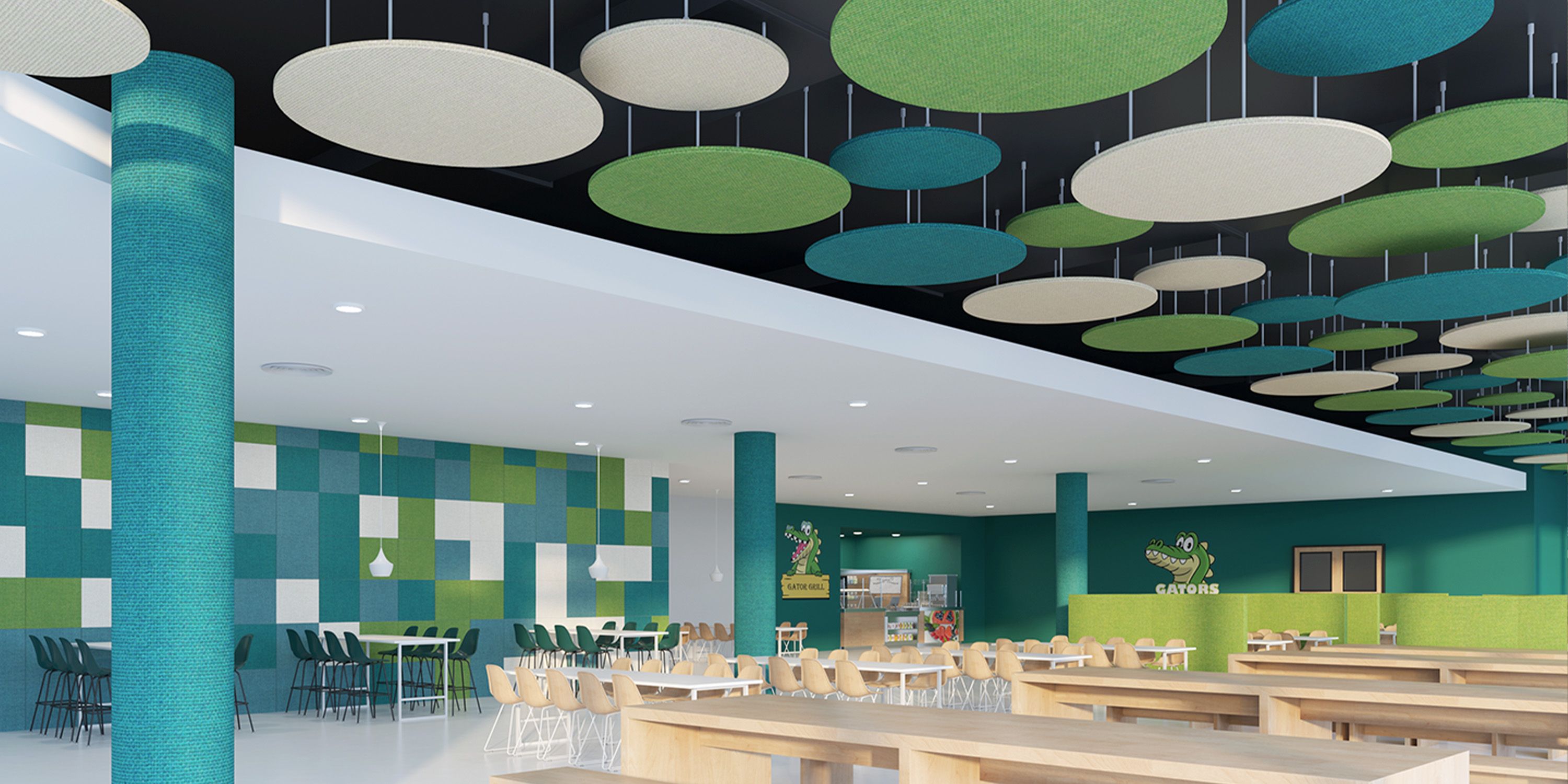

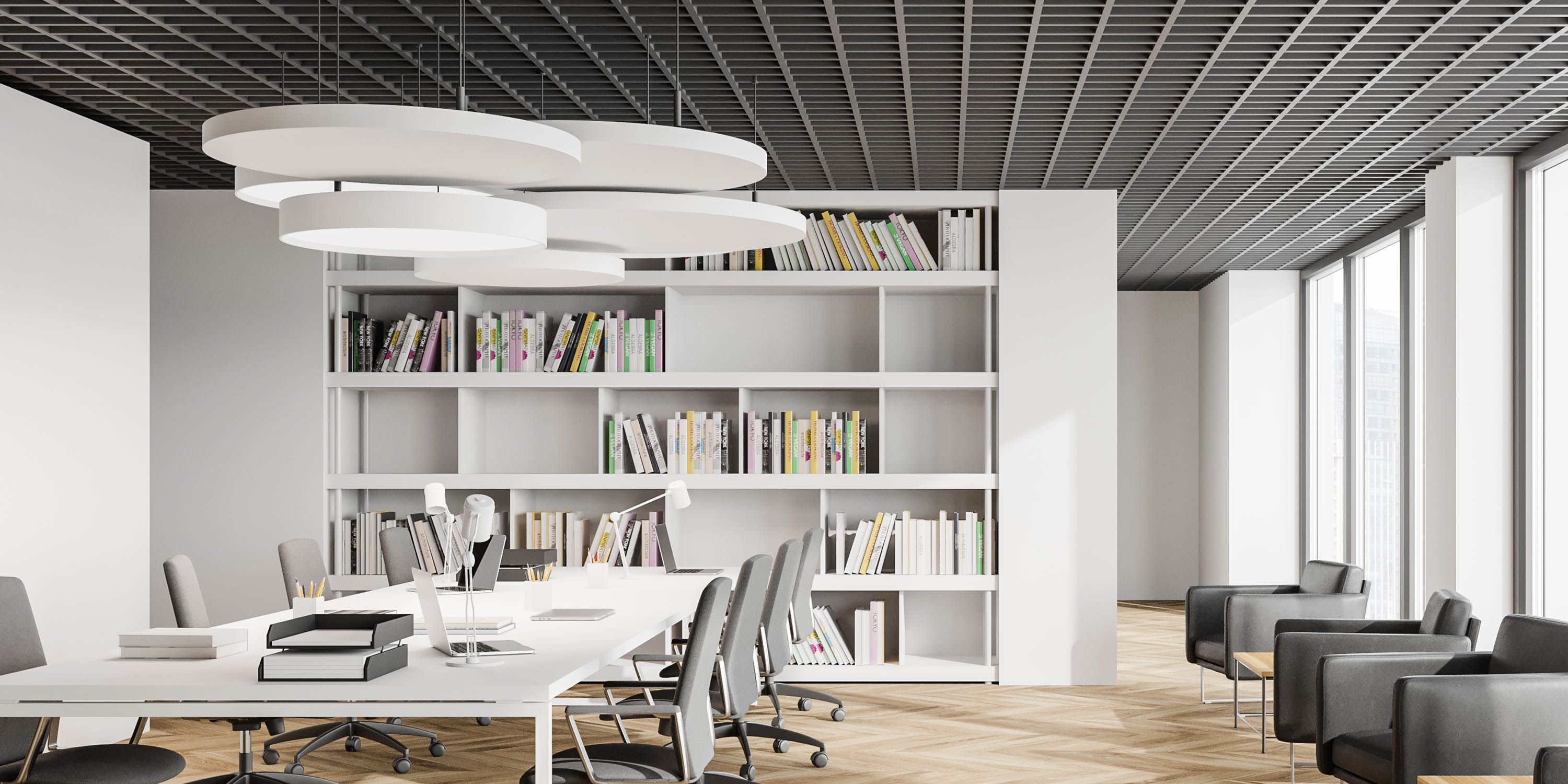

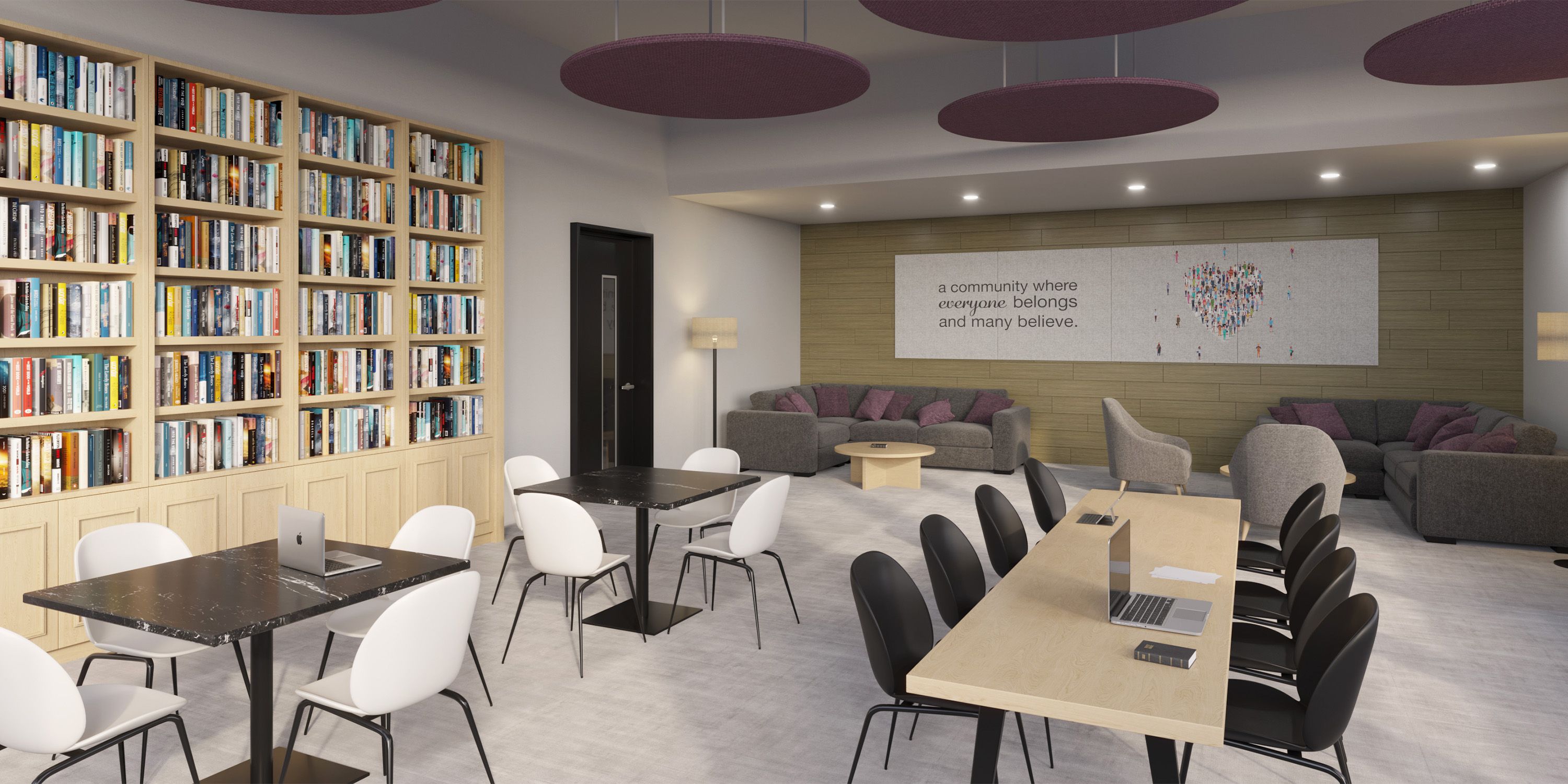

Sonic Ceiling Clouds are designed to suspend horizontally from the ceiling to effectively reduce reflected sound. Perfect for large open areas, these hanging cloud panels are available in any custom shapes or sizes and offer a unique look, depth, or design to a ceiling—or they can simply blend in.



Specifications

  • Custom shapes and sizes up to 4' x 12' or 5' x 10'
  • Thickness 1/2" | 1 1/2" | 2"


Composition

  • 6-7 lb. density rigid fiberglass board
  • Resin hardened edges


Finish

  • All finishes are reviewed for panel stability
  • Your finish selection bonded directly panel face with all edges wrapped
  • Straight, flat, wrinkle-free surface
  • Tailored corners


Fire Rating

  • All components are ASTM E84—Class I/A

  Downloads:

Acoustical Data

NRC range: 0.90 – 1.00

Ceiling Cloud:

Per independent ASTM D 1037-12 testing, Lamvin’s 2” Ceiling Clouds withstand an average peak load of 118 lbs per L-bracket attachment rail.

A 2” Ceiling Cloud weighs 1.69 lbs per square foot, or 54 lbs for a 4’ x 8’ cloud. This translates to a minimum safety ratio 2.19:1 per rail, and an overall rating of 6.57:1 when three L-bracket rails are used.

Fabric Finishes for Acoustical Panels

Your acoustical panel finish choices are endless. Choose your own material, or here are some links provided to a few of our recommended textile manufactures for your fabric selection. Please note not all fabrics are suitable for premium acoustical performance.
