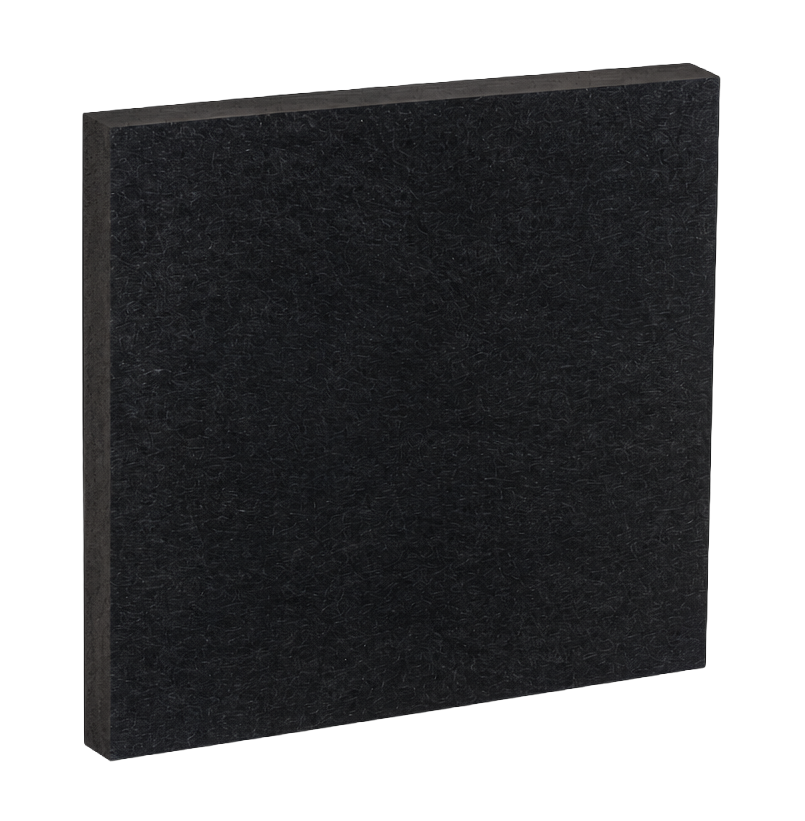

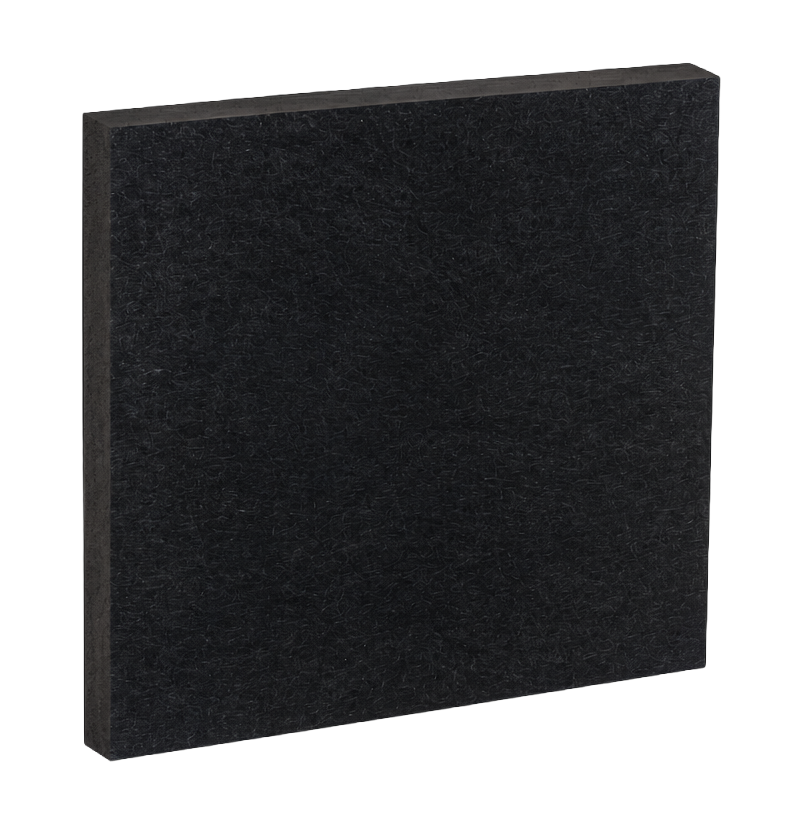

Sonic Theater Board
Sonic Theater Board is a black, rigid, sound absorptive product designed to reduce reverberation in Commercial, Education, Hospitality / Entertainment spaces and similar interior environments. Lightweight and easily cut to size in the field with a utility knife, Sonic Theater Board is completely customizable and can be dropped into any size ceiling grid to tackle the most reverberant noise problems.
Density and Thickness
- 3#, 1” and 2”
- 6#, 1” and 2”
Size
- Standard 4’ x 8’ board size
- 2’ x 2’ or 2’ x 4’ tiles cut to size
Applications
- Commercial
- Education
- Hospitality / Entertainment
- Similar Interior Environments
Fire Rating
- Class A Fire Rated per ASTM E84
ACOUSTICAL DATA
| Density | Thickness | Frequency (Hz) | ||||||
|---|---|---|---|---|---|---|---|---|
| 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC | ||
| 3# | 1” | 0.09 | 0.24 | 0.63 | 0.84 | 0.95 | 1.01 | 0.70 |
| 3# | 2” | 0.12 | 0.67 | 1.01 | 1.06 | 1.06 | 1.05 | 0.95 |
| 6# | 1” | 0.14 | 0.24 | 0.71 | 1.00 | 1.01 | 0.96 | 0.75 |
| 6# | 2” | 0.27 | 0.86 | 1.18 | 1.11 | 1.01 | 1.00 | 1.05 |
Installation and Mounting Methods
-
L-Brackets -
Rotofast Cloud Anchor -
Rotofast Snap-On -
Z-Clips
