Sonic Printed Art Panel
Lets Do This > Printing Guidelines > Download Revit File Download MasterSpec®

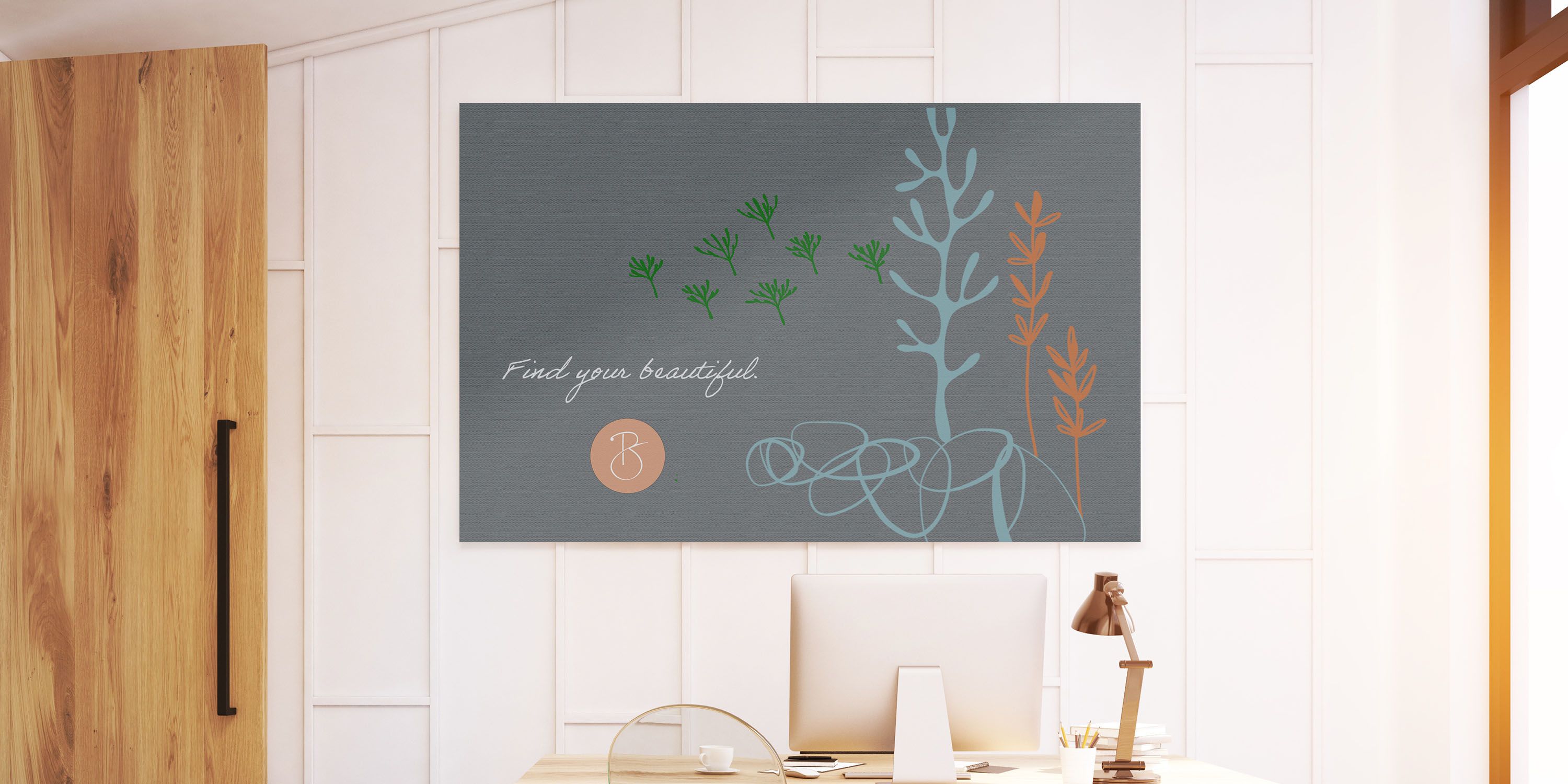

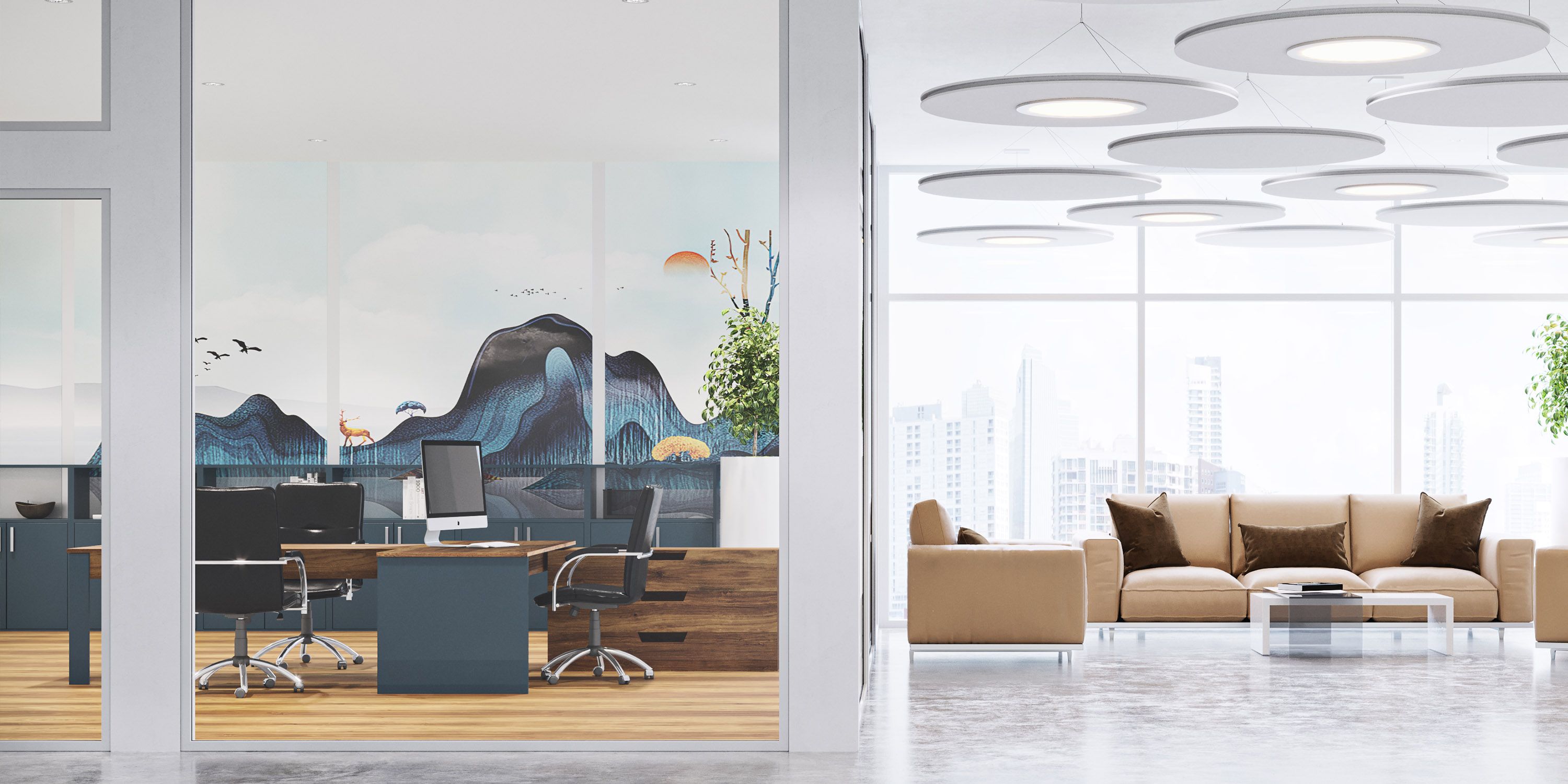

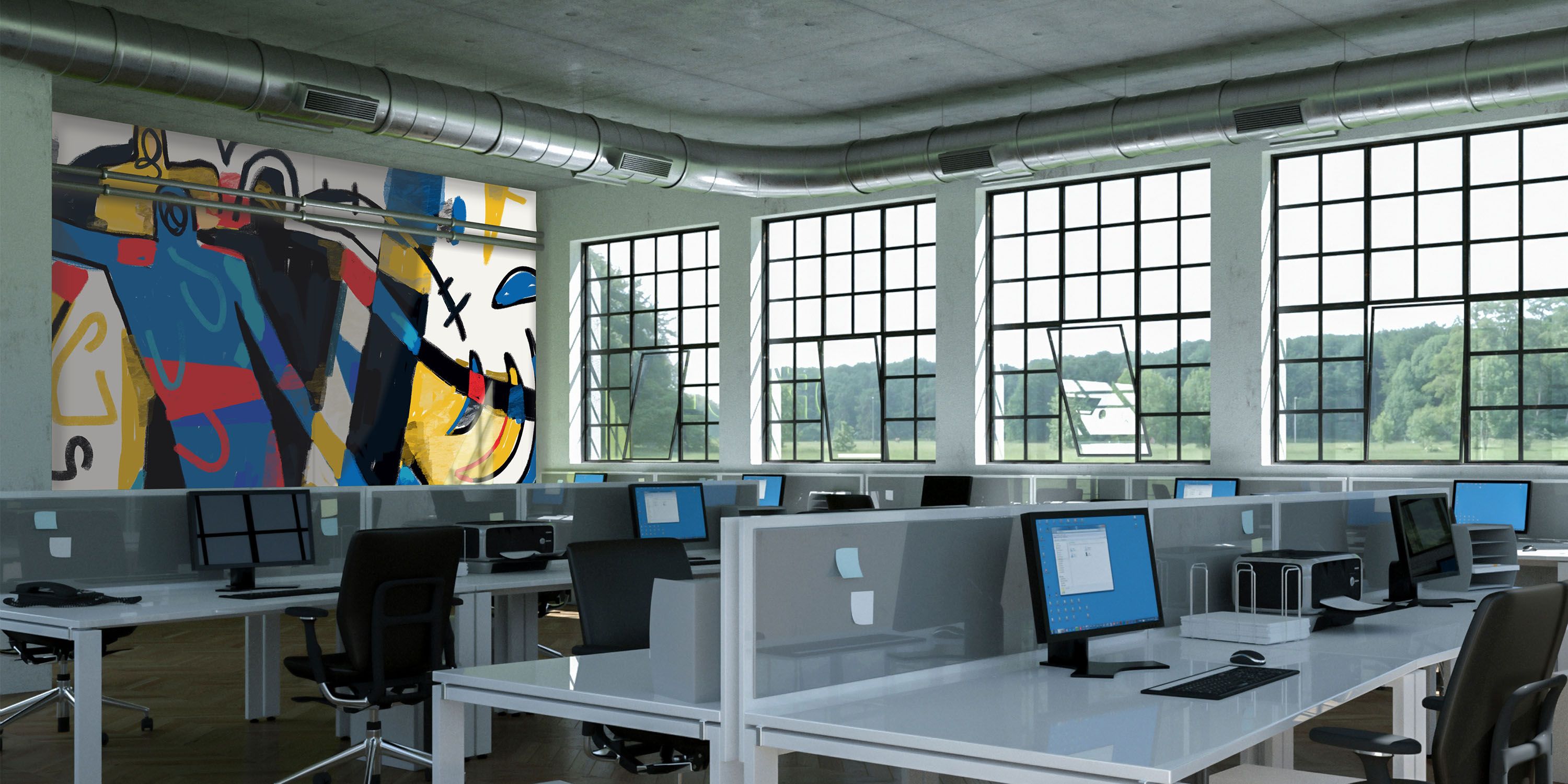

Sonic Printed Art Panels open up infinite possibilities for your creativity and imagination by providing acoustical performance and limitless design. The image can be printed as a singular panel or arrayed into multiple panels to cover larger surface areas. This panel is suitable for framing further extending décor possibilities. Perfect for artwork, logos, or any image requiring a high-resolution finish and acoustic absorption
Specifications
- Max Size up to 4' x 10'
- Thickness 1 1/8" | 1 5/8" | 2 1/8"
- Custom Shapes & Sizes available
Composition
- 6-7 lb. density rigid fiberglass board
- Resin hardened edges
Finish
- Please supply a large format image of 300dpi or greater resolution
- The best format to use is a vector file (EPS or AI)
- Your printed image, bonded directly panel face with all edges wrapped
- Straight, flat, wrinkle-free surface
- Tailored corners
Fire Rating
- All components are ASTM E84—Class I/A
Acoustical Data
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|
| 1 1/8" Thickness | .08 | .54 | .86 | 1.10 | 1.02 | .99 | .90 |
| 2 1/8" Thickness | .39 | 1.02 | 1.02 | 1.01 | .96 | .96 | 1.00 |
Testing performed at an accredited acoustical laboratory within a controlled environment using specific fabric, sizes and mounting. Therefore, ratings may vary slightly depending on customers fabric choice and mounting configuration.
